Rear Muffler

Rear Muffler

Service Repair No - 30.10.22

Special Service Tools





Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Make sure to support the vehicle with axle stands.

Raise the vehicle on a lift.

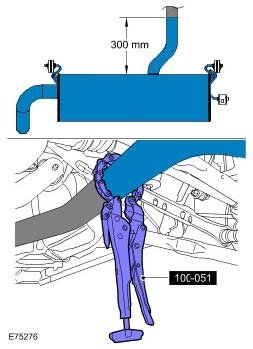

2. Using the special tool, cut the exhaust pipe at a distance of 300 mm from the front of the rear muffler.

Special Service Tools: Cutter, Exhaust Pipe





3. WARNING: This step requires the aid of another technician.





Installation

1. Install the rear muffler and tighten the service sleeve.

Torque:
40 Nm
