Home
>>
Land Rover
>>
2009
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G1D108A - G1E124
>>

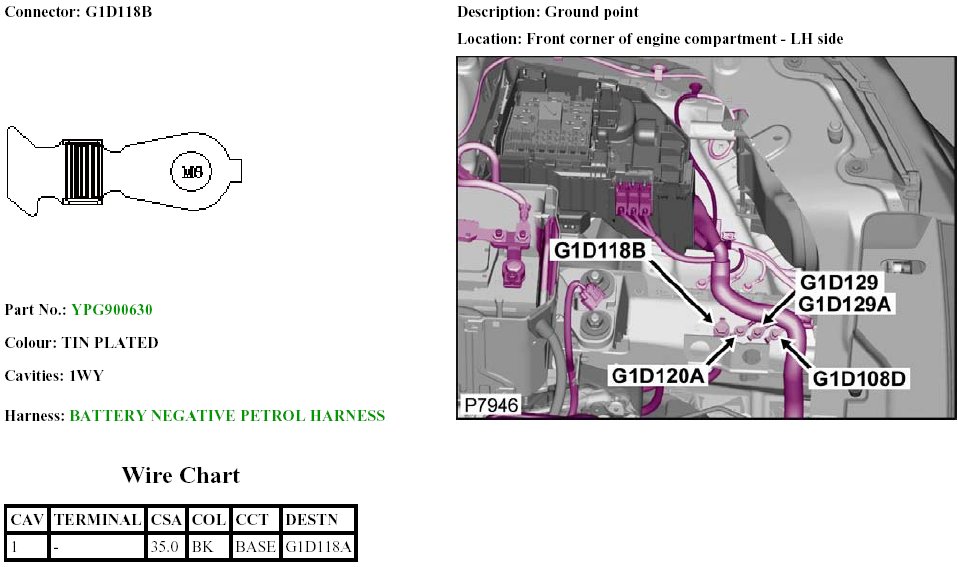

G1D118B
G1D118B
G1D118B:
