Land Rover
>>
2009
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1BB01A - C1637
>>

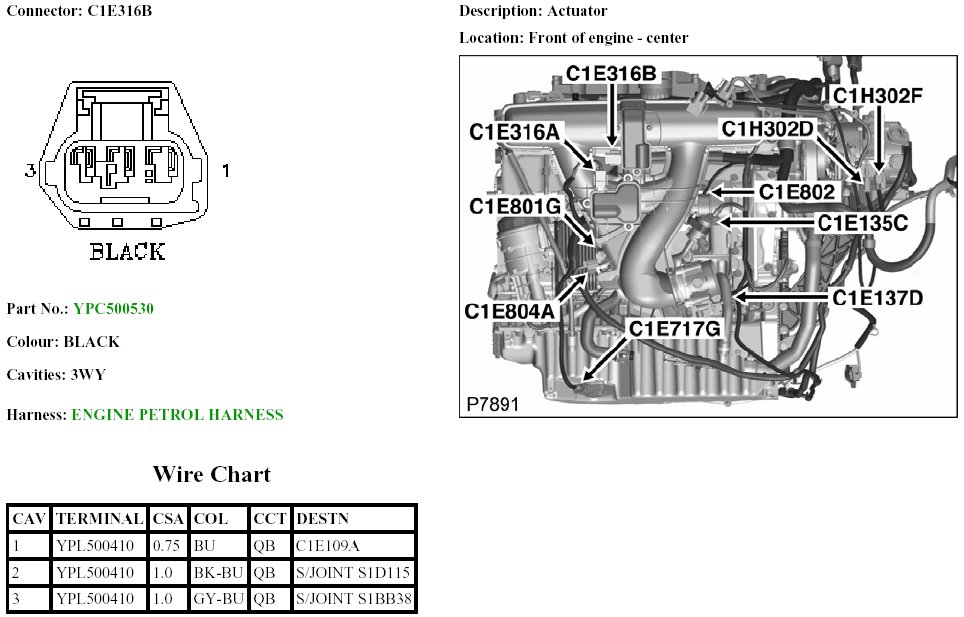

C1E316B
C1E316B
C1E316B:
