LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1BB01A - C1637
>>
C1E137D
C1E137D

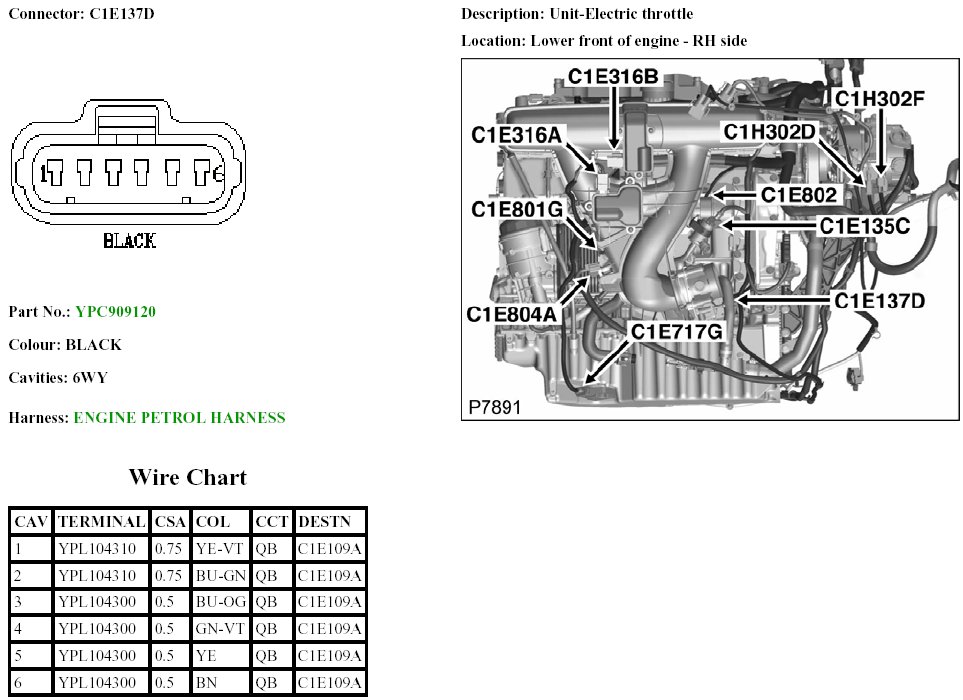

C1E137D:
