Front Seat Recliner Motor



Front Seat Recliner Motor

Service Repair No - 78.70.34

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front seat backrest cover.
2. Remove the front seat backrest pad.

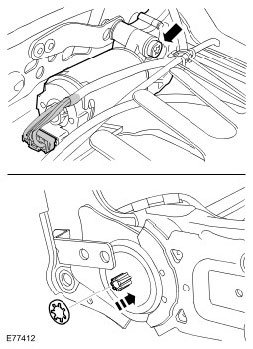

3. Torque: 10 Nm







Installation

1. To install, reverse the removal procedure.
