Roof Opening Panel Glass

Roof Opening Panel Glass

Removal

1. Open the roof opening panel blind.
2. Open the roof opening panel glass.







3. Remove the roof opening panel glass guides.

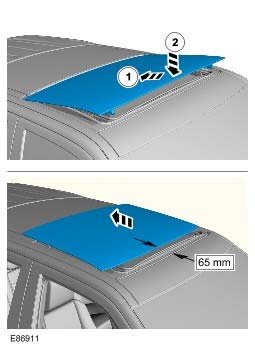

4. Position the roof opening panel glass to 65 mm from the closed position.







5. CAUTION: Protect the surrounding paintwork to avoid damage.

NOTE: This step requires the aid of another technician.

Release the roof opening panel glass.







6. NOTE: This step requires the aid of another technician.

Remove the roof opening panel glass.







7. NOTE: Do not disassemble further if the component is removed for access only.

Remove the roof opening panel glass runners.







Installation

1. Install the roof opening panel glass runners.







2. Install the roof opening panel glass.
Align the rear runners to the roof opening panel channels.
Carefully slide the roof opening panel glass rearward, so that a 65 mm opening is achieved.

Carefully align and locate the roof opening panel glass to the regulator.







3. Open the roof opening panel glass.
4. Install the roof opening panel glass guides.

Torque: 2.5 Nm

5. Close the roof opening panel glass.
6. Manually initialize the roof opening panel motor.
7. Switch the ignition on.
Press the front leading edge of the roof opening panel switch and move the roof opening panel glass to the full tilt position.
Release the switch.
Press and hold the front leading edge of the switch.
After 20 seconds the roof opening panel glass will perform the following: stall in the tilt mode causing a noise, a full open and close cycle.
Do not release the switch until the roof opening panel glass has completed the above step.
Release the switch.
The roof panel will now operate one-touch open (tilt and fully open) and one-touch close (from the fully open position).
One touch close is inoperable from tilt.

8. Close the roof opening panel blind.
