Rear Quarter Trim Panel

Rear Quarter Trim Panel

Service Repair No - 76.13.37

Removal

1.







2. Remove the loadspace scuff plate.







3. Release the liftgate seal.







4.







5.







6. Release the rear door seal.







7.

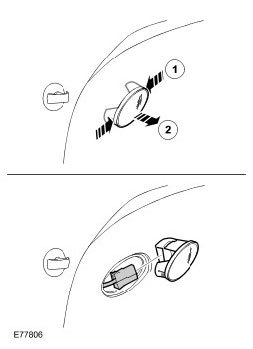

8. If installed, remove the loadspace lamp.







9. Remove the rear quarter trim panel.







10. NOTE: Do not disassemble further if the component is removed for access only.

Remove the 7 clips.







11. Remove the access cover.







Installation

1. Install the access cover.
2. Install the clips.
3. Install the rear quarter trim panel.
4. Install the loadspace lamp.
5. Install the loadspace roller blind.
6. Secure the rear door seal.
7. Install the loadspace securing ring and tighten the Torx screw.

Torque: 25 Nm

8. Install the loadspace stowage tray.
9. Secure the liftgate seal.
10. Install the loadspace scuff plate.
11. Install the spare wheel cover.
