Speaker: Description and Operation

Speakers

COMPONENT LOCATION





OVERVIEW
Depending on the audio system fitted there are 3 different speaker configurations, these are: Base audio
^ 2 Front door mounted mid/low range speakers
^ 2 Front door mounted high range speakers
^ 2 Rear door mounted mid/low range speakers
^ 2 Rear door mounted high range speakers

Mid range audio system
^ 2 Front door mounted mid/low range speakers
^ 2 Front door mounted high range speakers
^ 2 Rear door mounted mid/low range speakers
^ 2 Rear door mounted high range speakers
^ Rear loadspace mounted sub-woofer enclosure

High line audio system
^ 2 Front door mounted low range speakers
^ 2 Front door mounted high range speakers
^ 2 Rear door mounted mid/low range speakers
^ 2 Rear door mounted high range speakers
^ Rear loadspace mounted sub-woofer enclosure
^ 2 Mid range speakers mounted on the instrument panel
^ 1 center fill speaker centrally located in the instrument panel
^ 2 rear surround speakers mounted in the rear C pillars

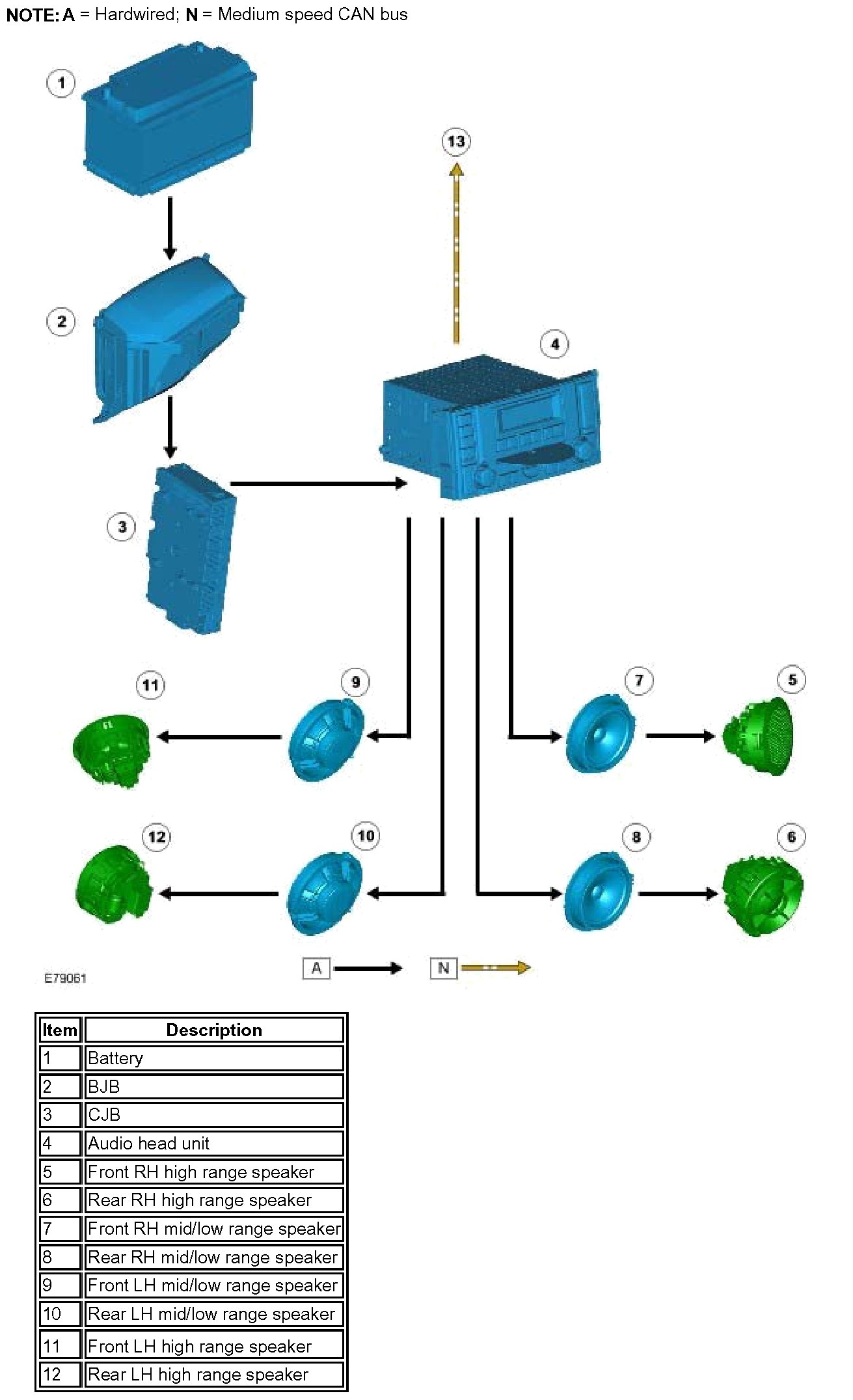

CONTROL DIAGRAM SHEET 1 of 3

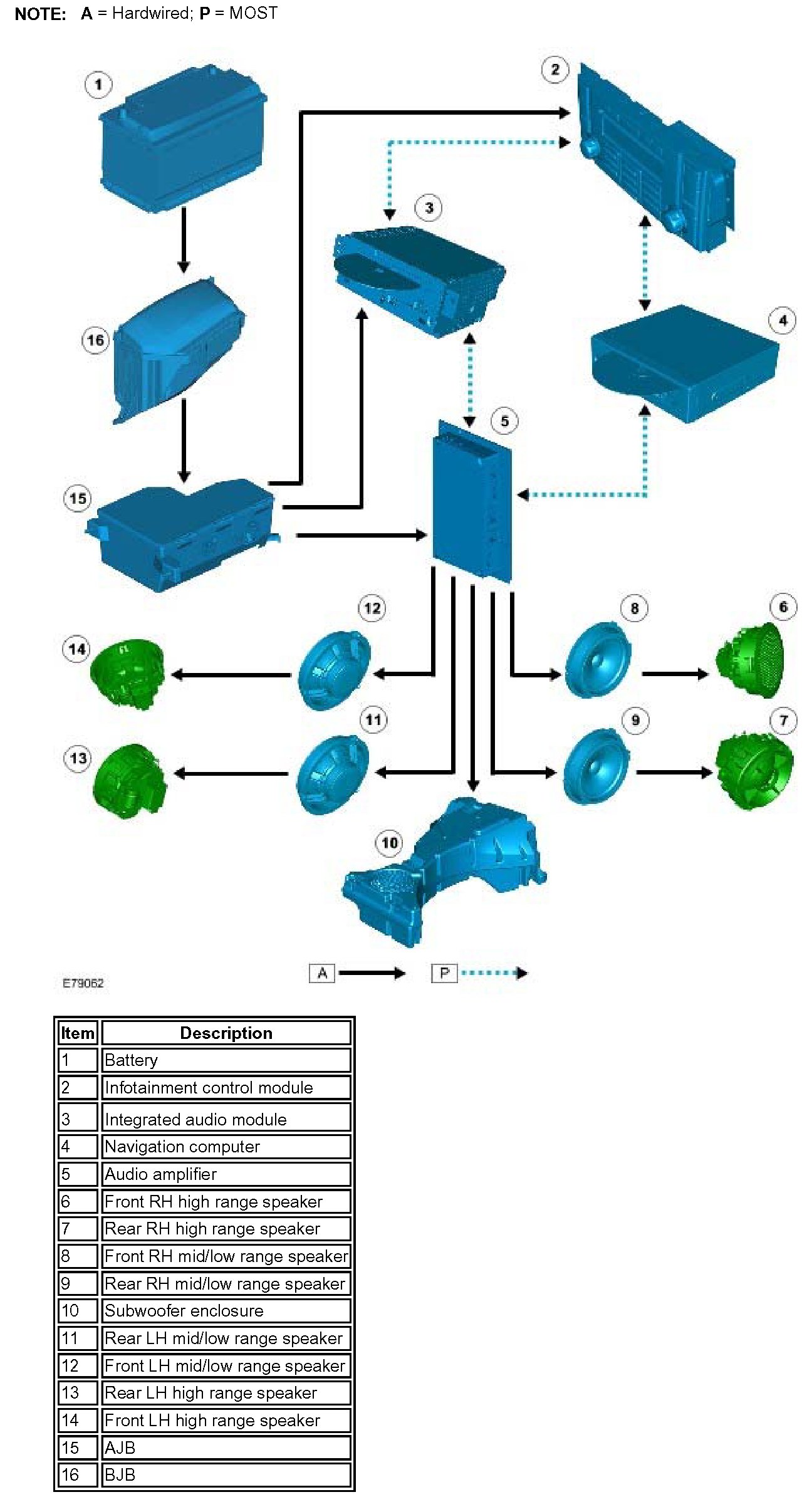

CONTROL DIAGRAM SHEET 2 of 3

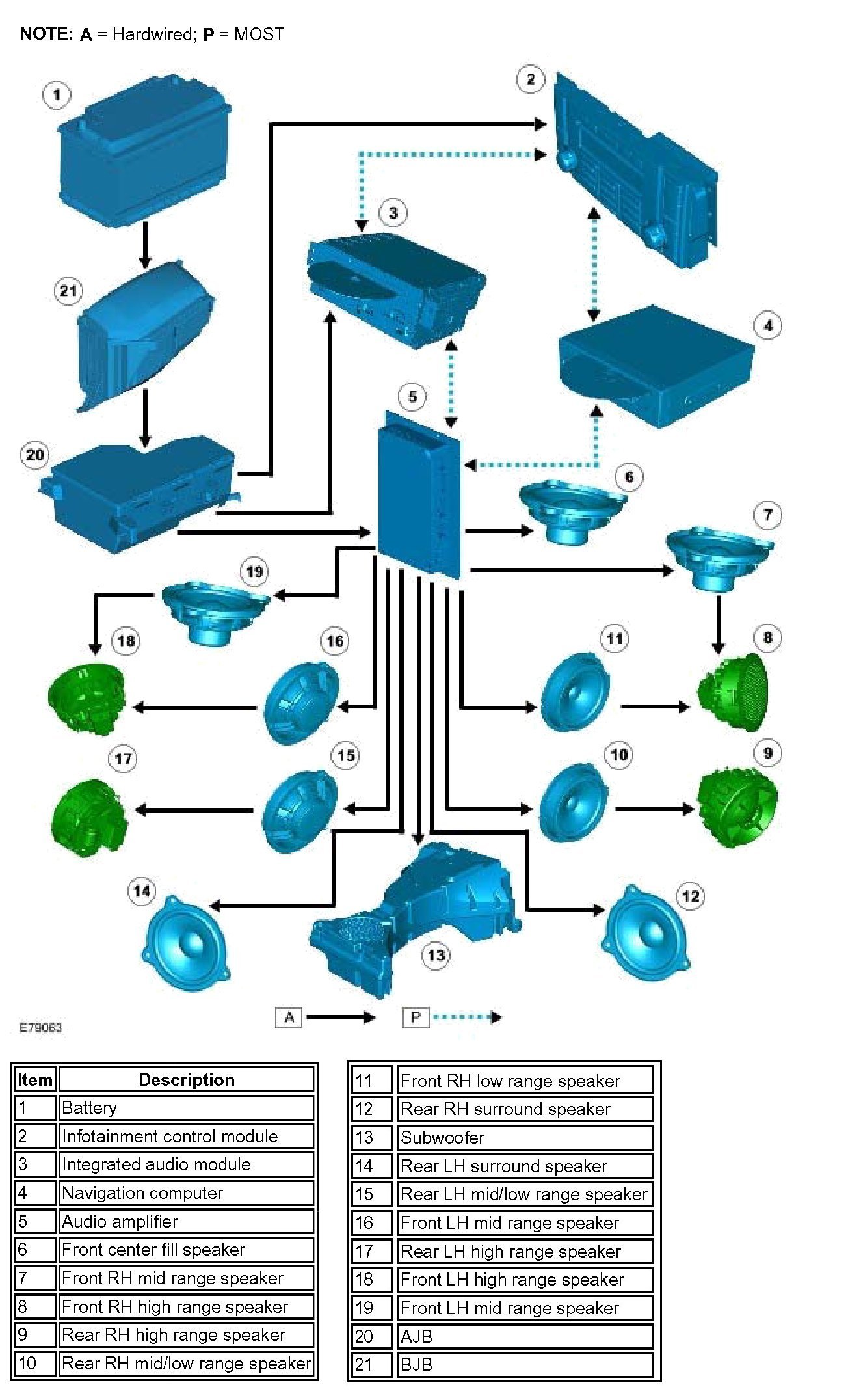

CONTROL DIAGRAM SHEET 3 of 3
