Satellite Radio Tuner

Satellite Radio Tuner

Removal

NOTE: Removal steps in this procedure may contain installation details.

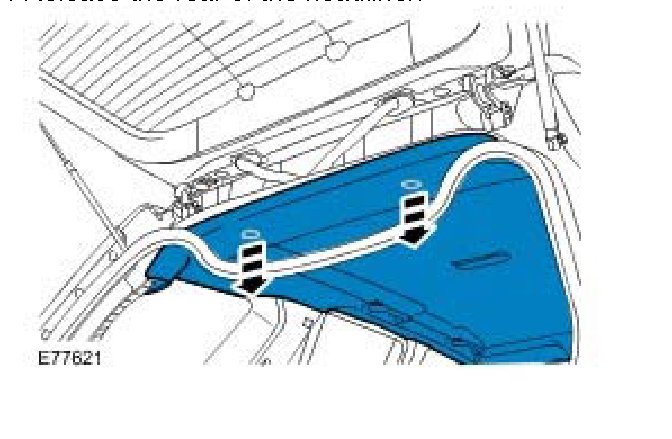

1. Remove the LH rear quarter trim panel.





CAUTION:
^ Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
^ Make sure that the optical connectors are clean and free of foreign material.

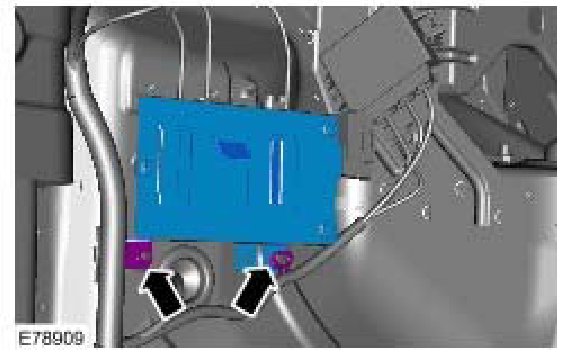

3. Torque: 10 Nm

NOTE: Do not disassemble further if the component is removed for access only.

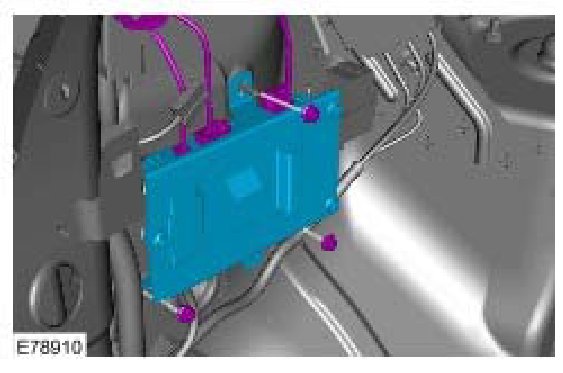

4. Torque:
M5. 6 Nm
M6.10 Nm





Installation
1. To install, reverse the removal procedure.
2. If a new component is to be installed, configure using Land Rover approved diagnostic equipment.
