Anti - Theft - Passive

Anti-Theft - Passive

Fault Codes/DTCs

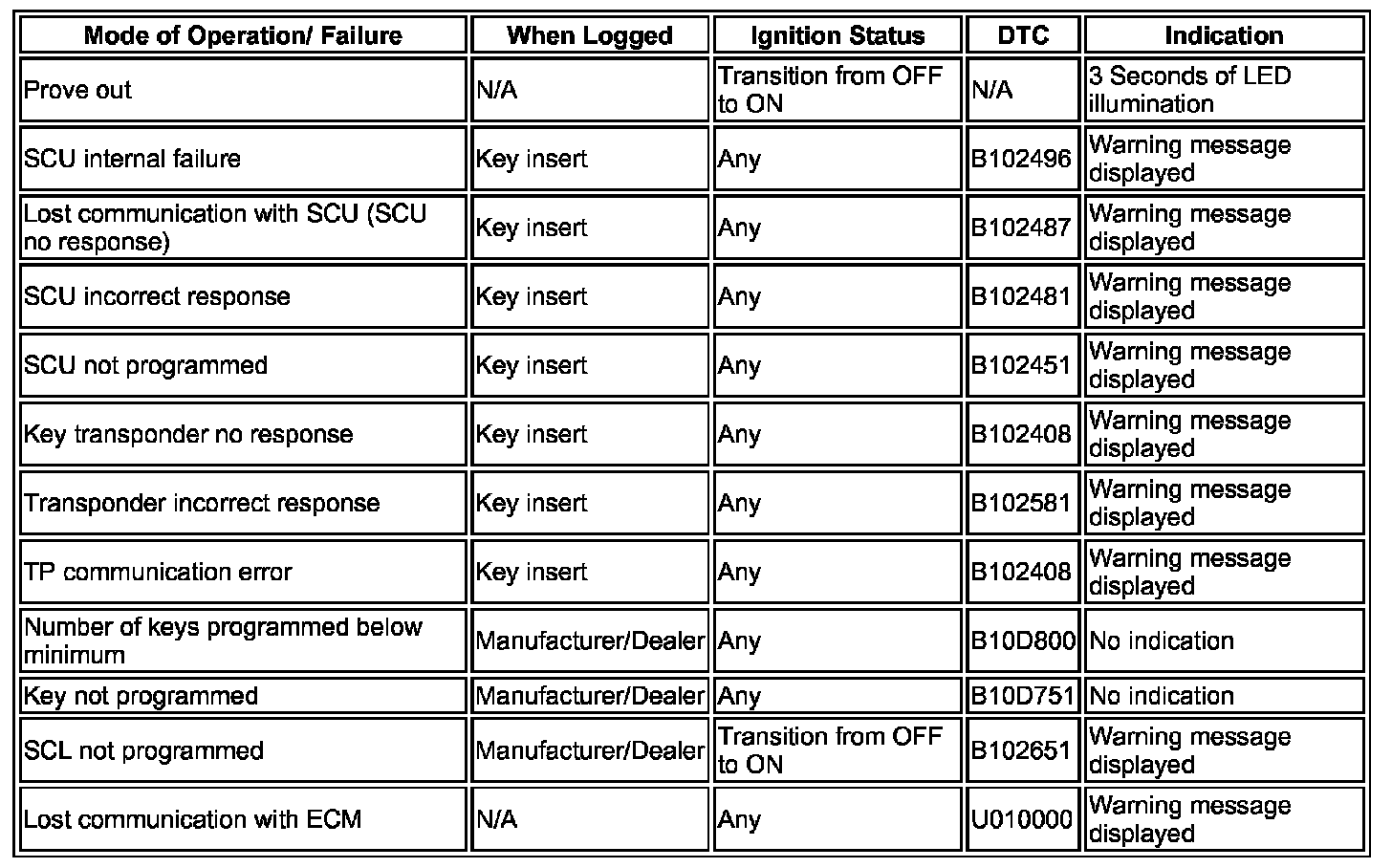

For the various PATS modes of operation/failures listed in the table, the CJB will store a DTC which will not be shown to the customer.

When the Key is inserted and ignition status ON is achieved, if the start authorisation passes, the LED in the bottom left of the instrument cluster will illuminate for 3 seconds then go off. If start authorisation fails, the LED will continue to flash every 2 seconds. Please see table below for a list of fault codes that will be stored under certain conditions.
