Selector Shaft Seal

Selector Shaft Seal

Service Repair No - 44.15.34

Special Service Tools











Removal

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

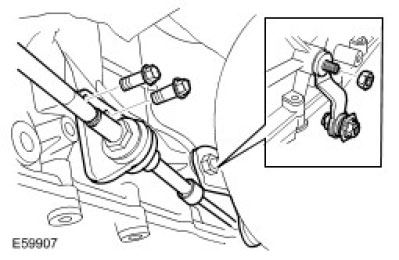

2. RH side only: Release the selector cable and lever.
^ Remove the 2 bolts.
^ Remove the nut.





3. CAUTION: Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

Remove the selector shaft seal.

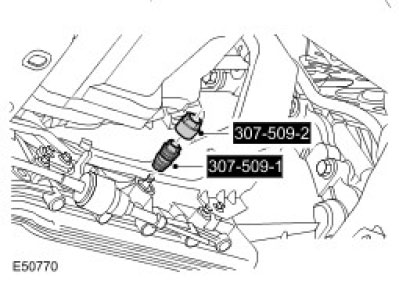

^ Install 307-509-1 to the seal.
^ Install 307-509-2 to 307-509-1 and extract the seal.





Installation

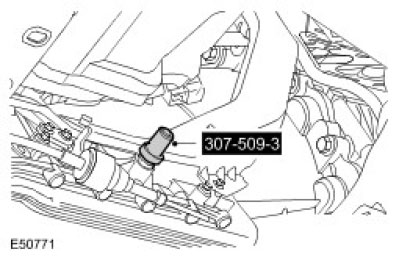

1. Using 307-509-3, install the selector shaft seal.
^ Clean the components.





2. RH side only: Install the selector cable and lever.
^ Tighten the nut to 12 Nm (9 ft. lbs.).
^ Tighten the bolts to 10 Nm (7 ft. lbs.).
