Upper Arm Bushing
Upper Arm Bushing - 4.2L/4.4LService Repair No - 64.35.22

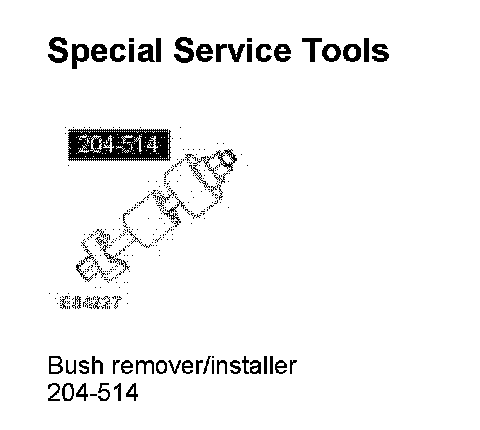

Special Service Tools
Removal
1. Raise and support the vehicle.
2. Remove the wheel and tire.
3. Remove the upper arm.
NOTE:
Secure the upper arm in a suitable vice.

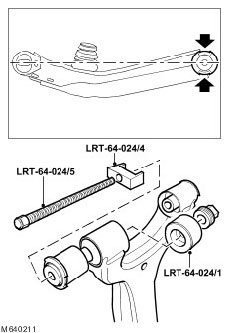

4. Using the special tools, remove the upper arm bushes.
Installation
1. Using the special tools, install the upper arm bushes.
^ Align the bushes as shown.
2. Install the upper arm.
3. Install the wheel and tire.
^ Tighten the wheel nuts to 140 Nm (103 ft. lbs.).
