Land Rover
>>
2008
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Transfer Case Actuator
>>
Sensor-Gearbox-Secondary Speed
Sensor-Gearbox-Secondary Speed

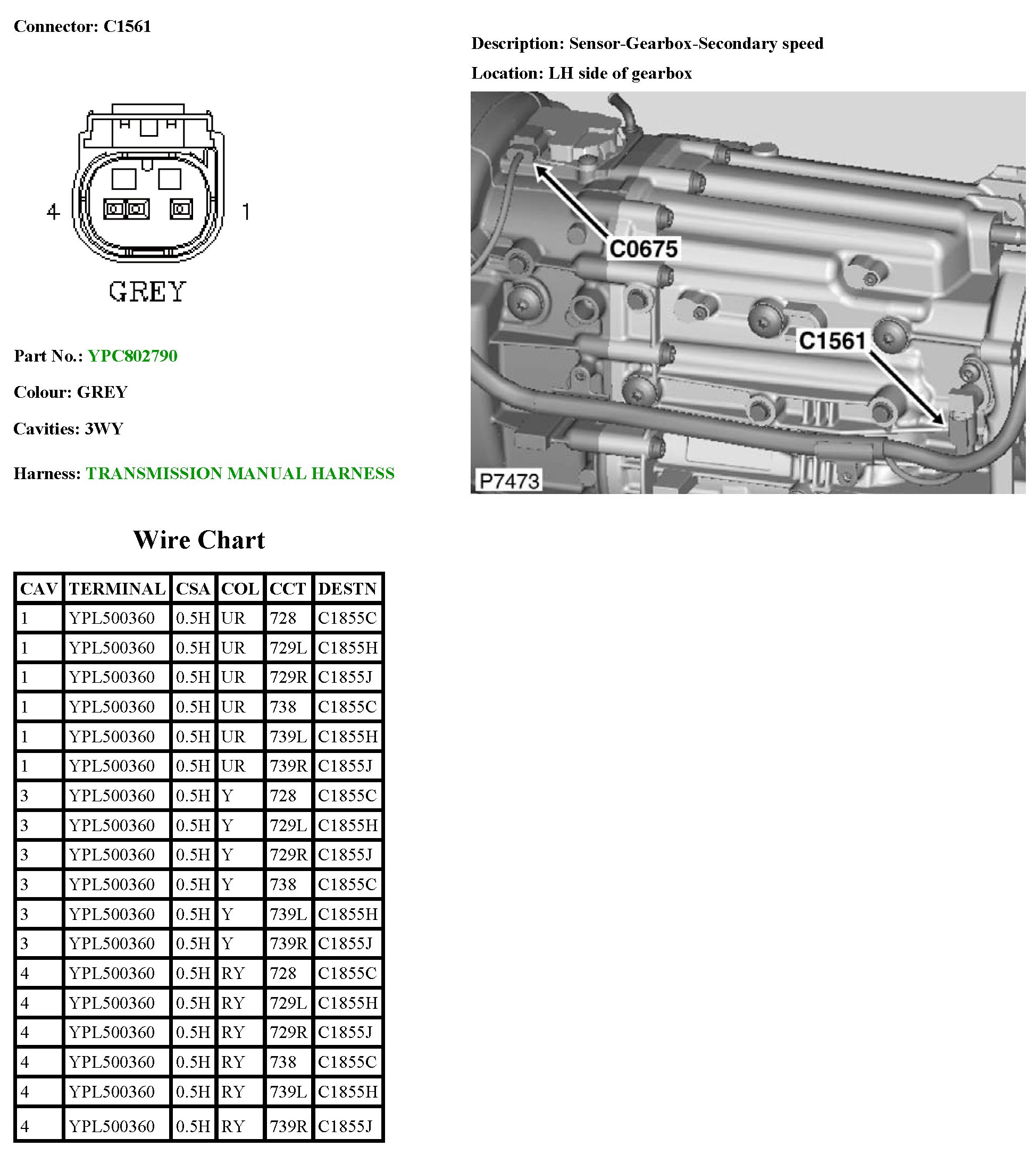

C1561:
