Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2008
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0901 - C1000
>>

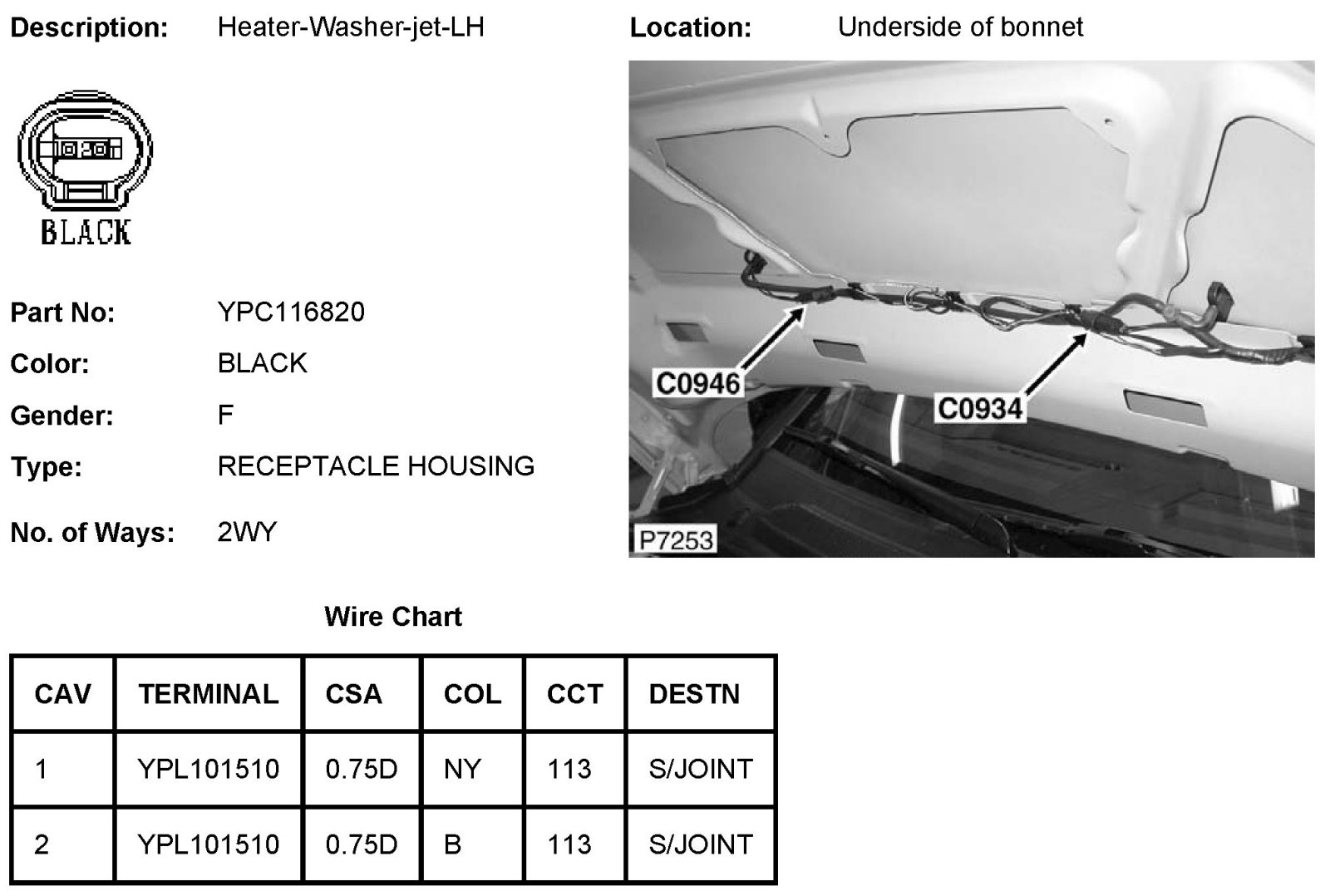

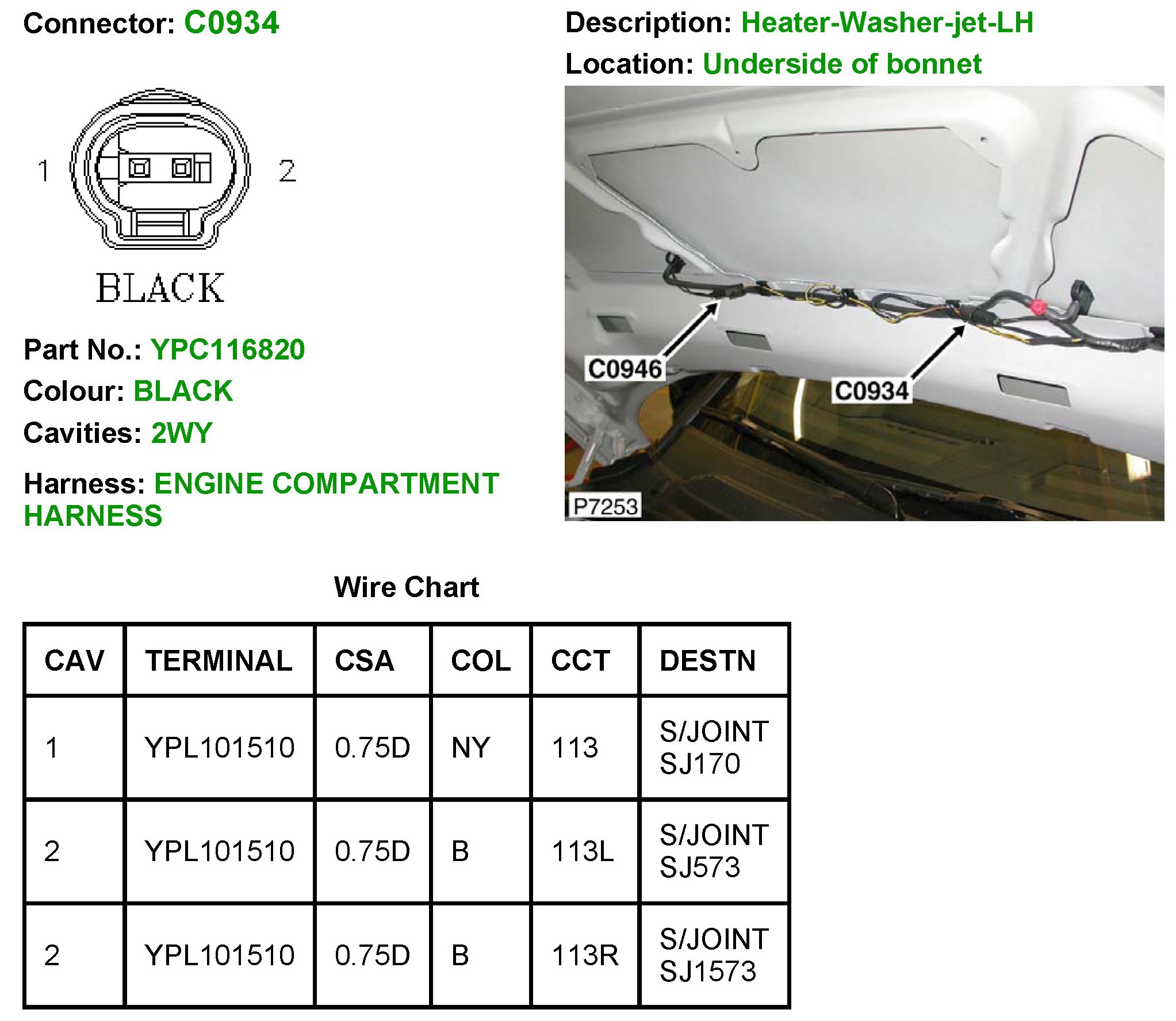

C0934
C0934
C0934:
C0934:
