Vacuum Pump: Service and Repair

Brake Vacuum Pump - 4.0L/4.4L

Service Repair No - 70.50.19

Removal





1. CAUTION: Always plug any open connections to prevent contamination.

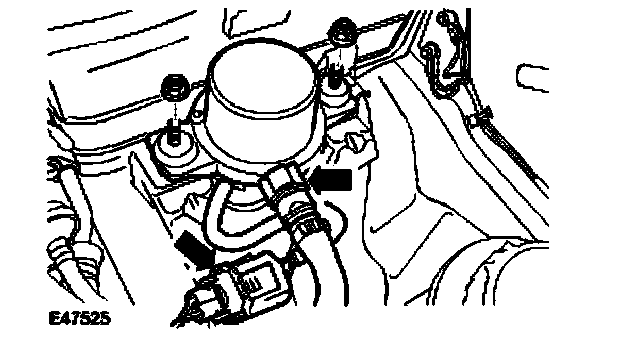

Remove the brake vacuum pump.
^ Release and disconnect the electrical connector.
^ Disconnect the vacuum line.
^ Remove the 2 nuts.





2. NOTE: Do not disassemble further if the component is removed for access only.

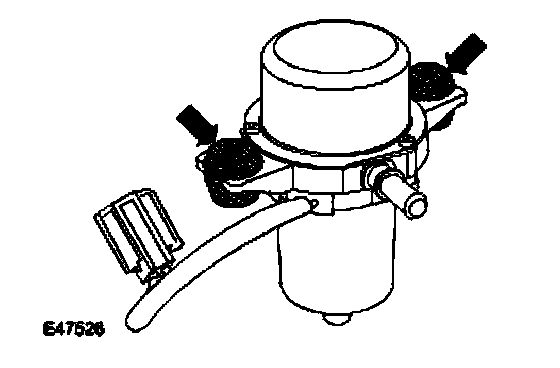

Remove the 2 rubber insulators.

Installation
1. To install, reverse the removal procedure.
^ Tighten the nuts to 5 Nm (4 ft. lbs.).
