Inner Constant Velocity (CV) Joint Boot

Inner Constant Velocity (CV) Joint Boot

Service Repair No - 47.10.16

Special Service Tools





Removal

NOTE: RH inner constant velocity joint boot shown, LH is similar.

1. Remove the halfshaft.

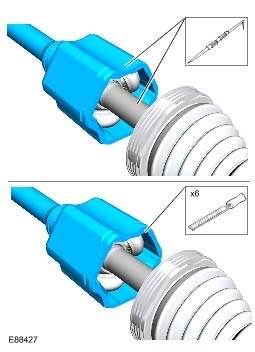

2. NOTE: Discard the retaining clips.





3. CAUTION: Make sure that filings and swarf do not enter the component.





4. NOTE: Discard the retaining clip.





5. Special Service Tools: Puller, General Purpose





Installation

1. CAUTION: Extreme cleanliness must be exercised when handling these components.

Clean and inspect the components for deterioration.

2. Install the inner CV boot onto the halfshaft.

3. NOTE: Install a new retaining clip.

Install the inner CV joint inner onto the halfshaft.

4. CAUTION: Make sure that these components are installed to the noted removal position.

Install the inner CV joint outer onto the halfshaft.

5. Pack the inner CV joint with the grease supplied.

6. NOTE: Install new retaining clips.

Secure the inner CV joint boot to the inner CV joint.

7. Install the halfshaft.
