Front Lower Arm

Front Lower Arm

Service Repair No - 64.35.54

Removal

1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
2. Remove the wheel and tire.
3. Discard the bolt.





4.

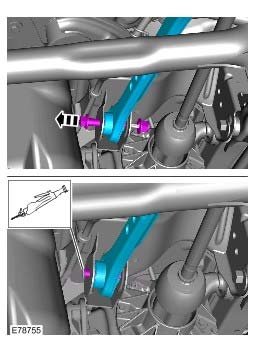

5. Partially release the bolt for access. Cut off the bolt head and withdraw in the opposite direction.

On installation, reverse the orientation of the new bolt.
Make sure the captive nut and protective shield from the service kit is installed.

6.





Installation

1. Install the front lower arm.

2. CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.

Install the nuts, bolts and washers, do not tighten at this stage.

3. CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.

Support weight of vehicle on a jack at the rear hub.

4. Tighten the nuts and bolts.

Torque:
175 Nm

5. WARNING: Make sure that a new bolt is installed.

Install the parking brake cable retaining bolt.
Torque:
10 Nm

6. Install the rear wheel.
7. Check and if necessary, adjust the rear wheel alignment
