Fuel Filler Neck: Service and Repair

Fuel Tank Filler Pipe

Service Repair No - 19.55.07

Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack.Always support the vehicle on safety stands.

1. Raise and support the vehicle.

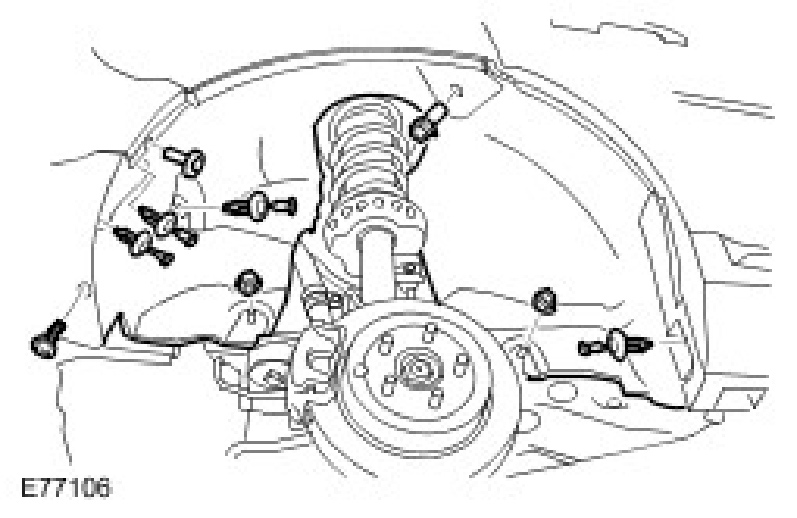

2. Remove the rear wheel.

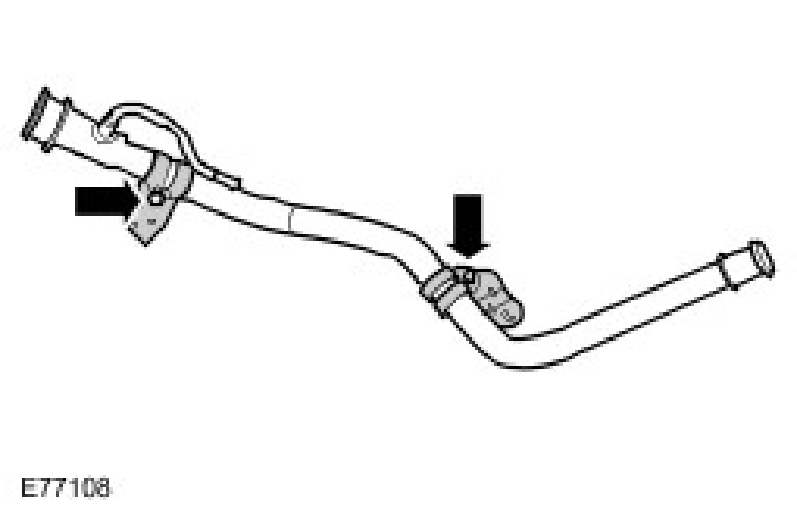

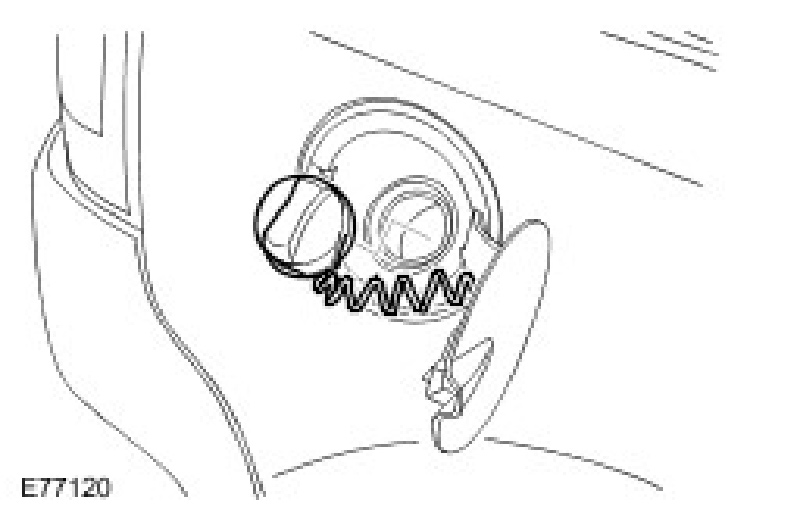

6. Remove the nut and bolt securing the fuel tank filler pipe to the body.
Torque: 10 Nm

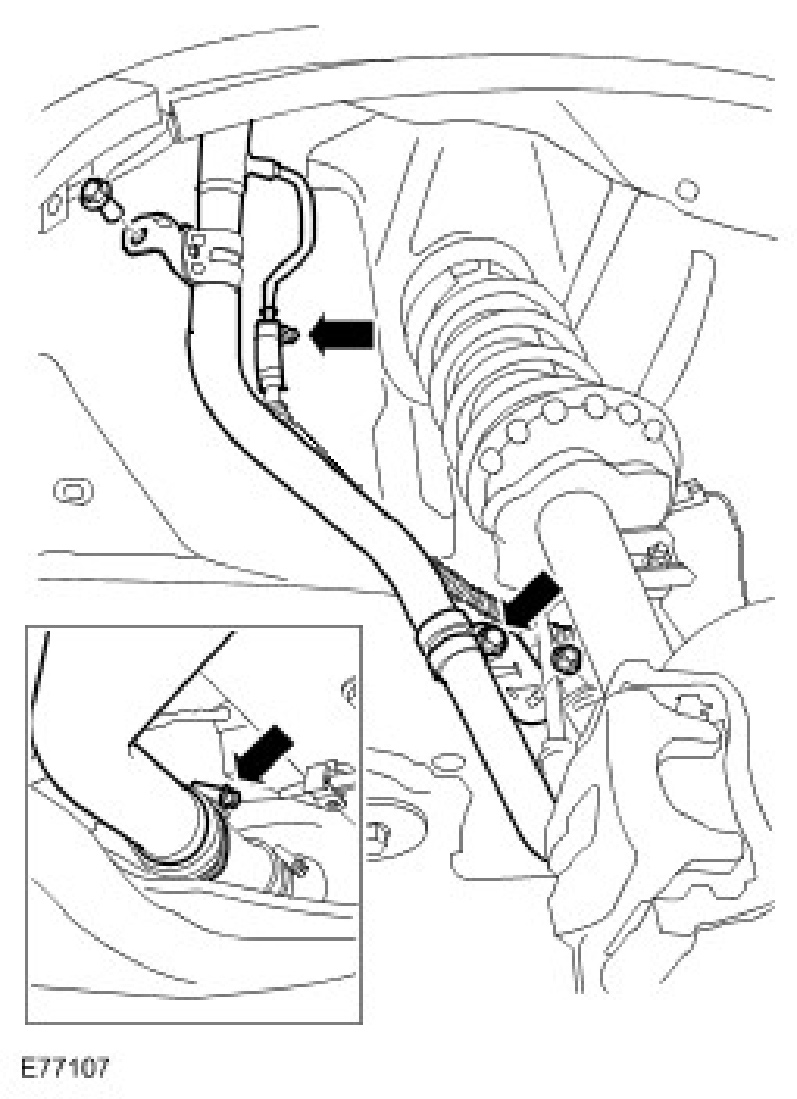

Loosen the fuel tank filler pipe lower bracket.
Torque: 10 Nm

Loosen the clip and disconnect the fuel filler hose from the fuel tank.

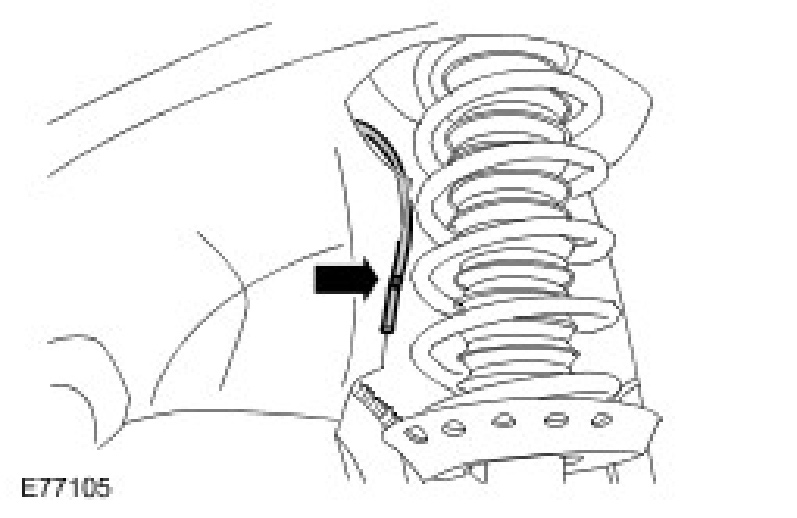

Loosen the clip and disconnect fuel filler pipe vent hose.





7. Torque: 10 Nm





Installation
1. To install, reverse the removal procedure.
