Crankshaft Position Sensor
>>
Locations
>>
Connector Locations
Connector Locations

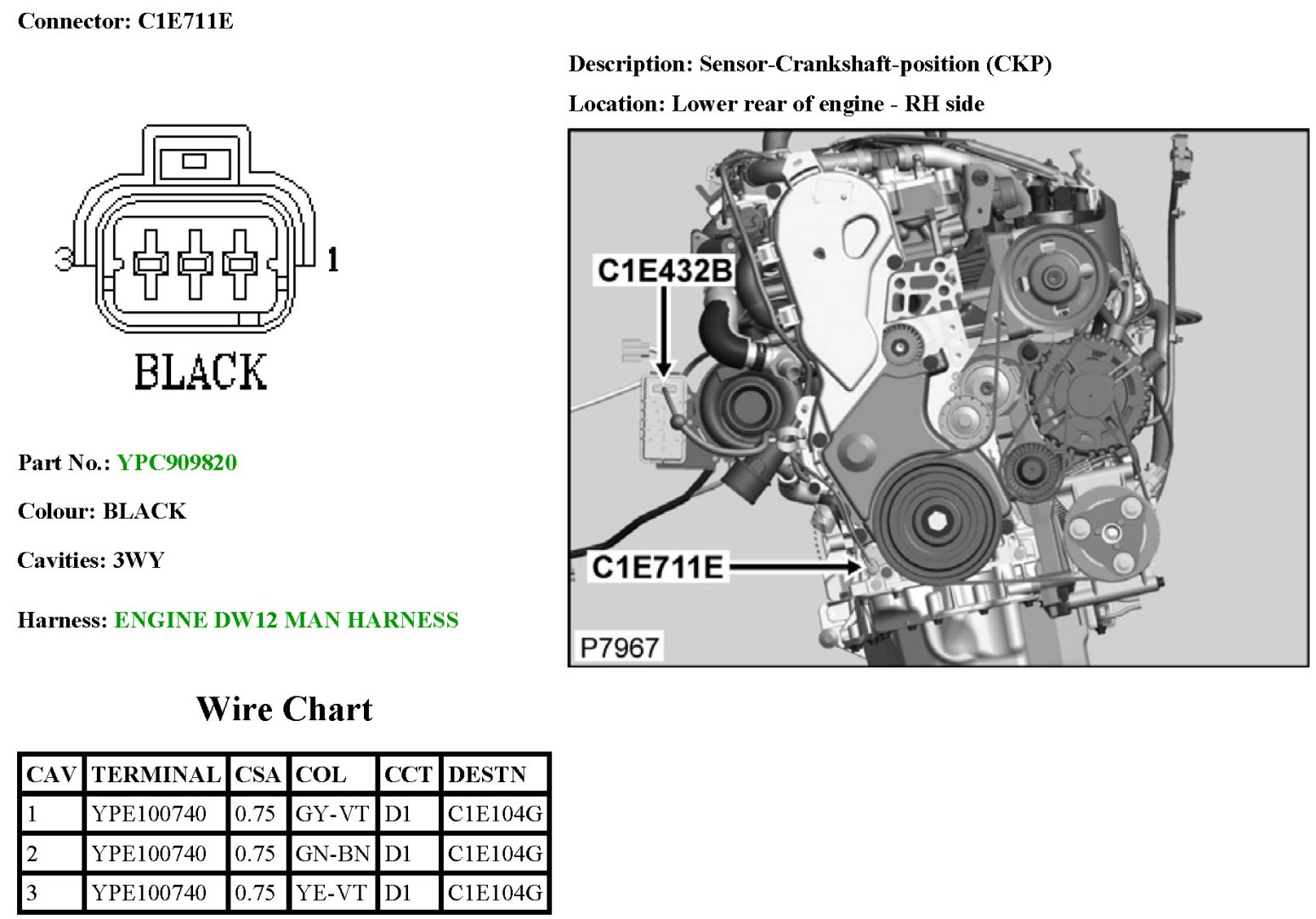

C1E711E:

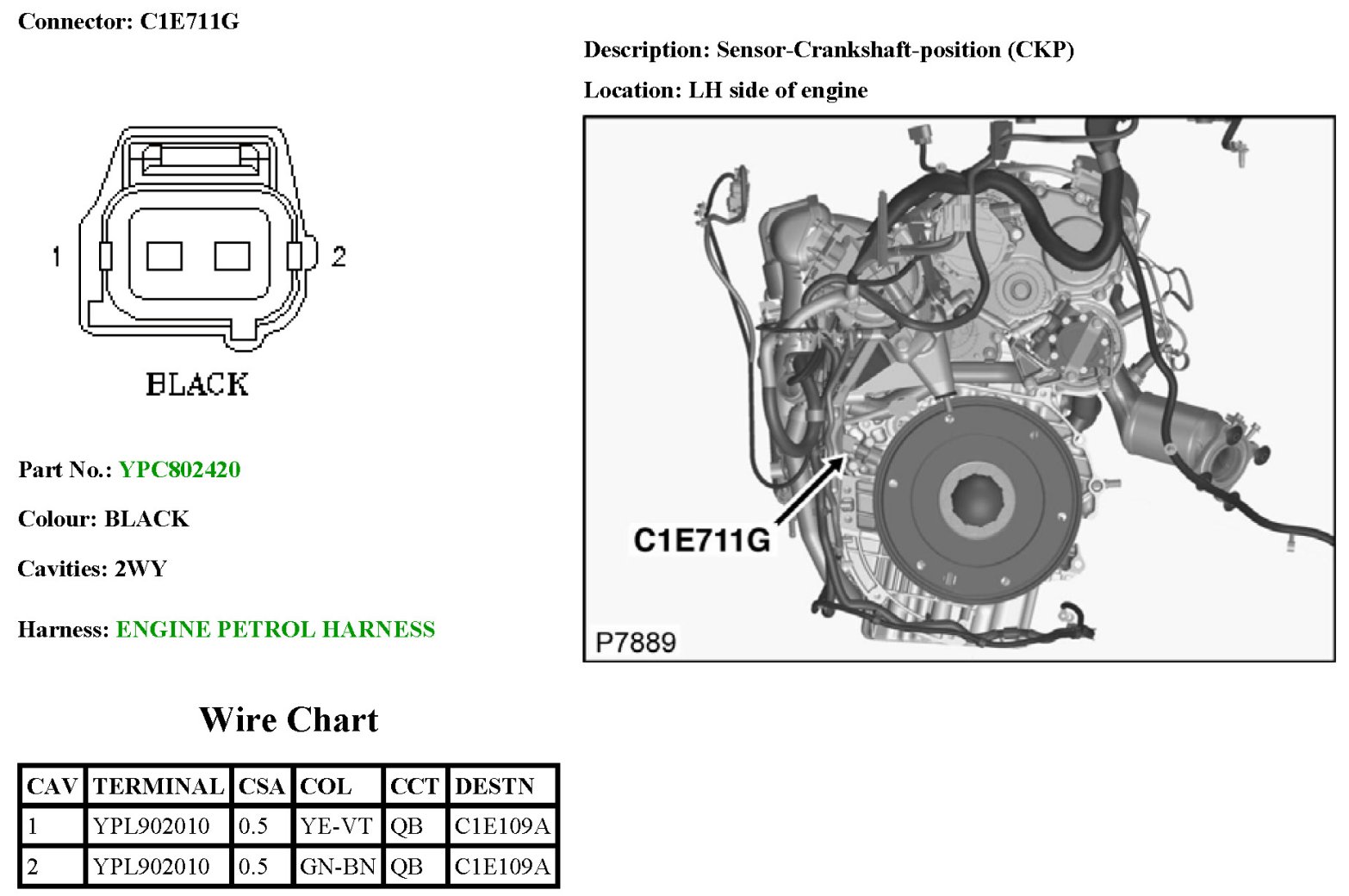

C1E711G:
