LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
C1BB01A - C12H
>>

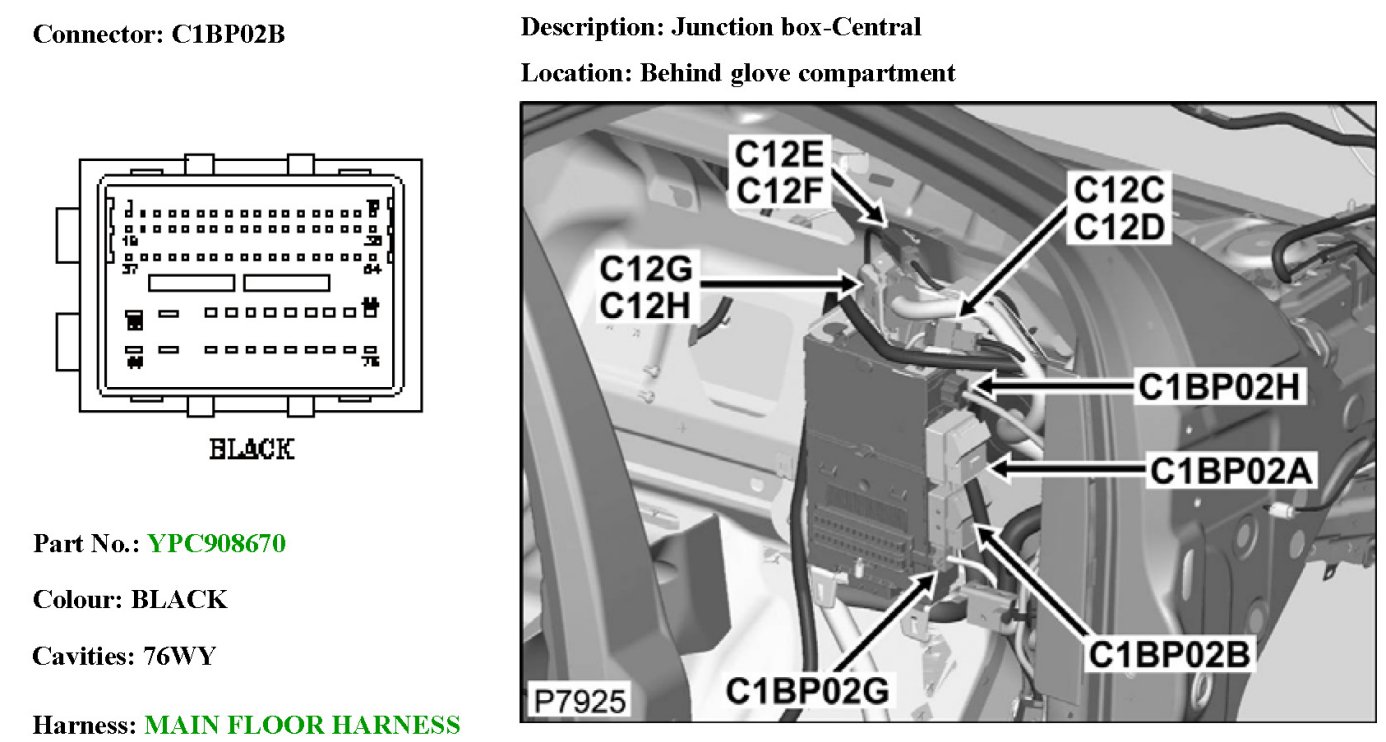

C1BP02B
C1BP02B

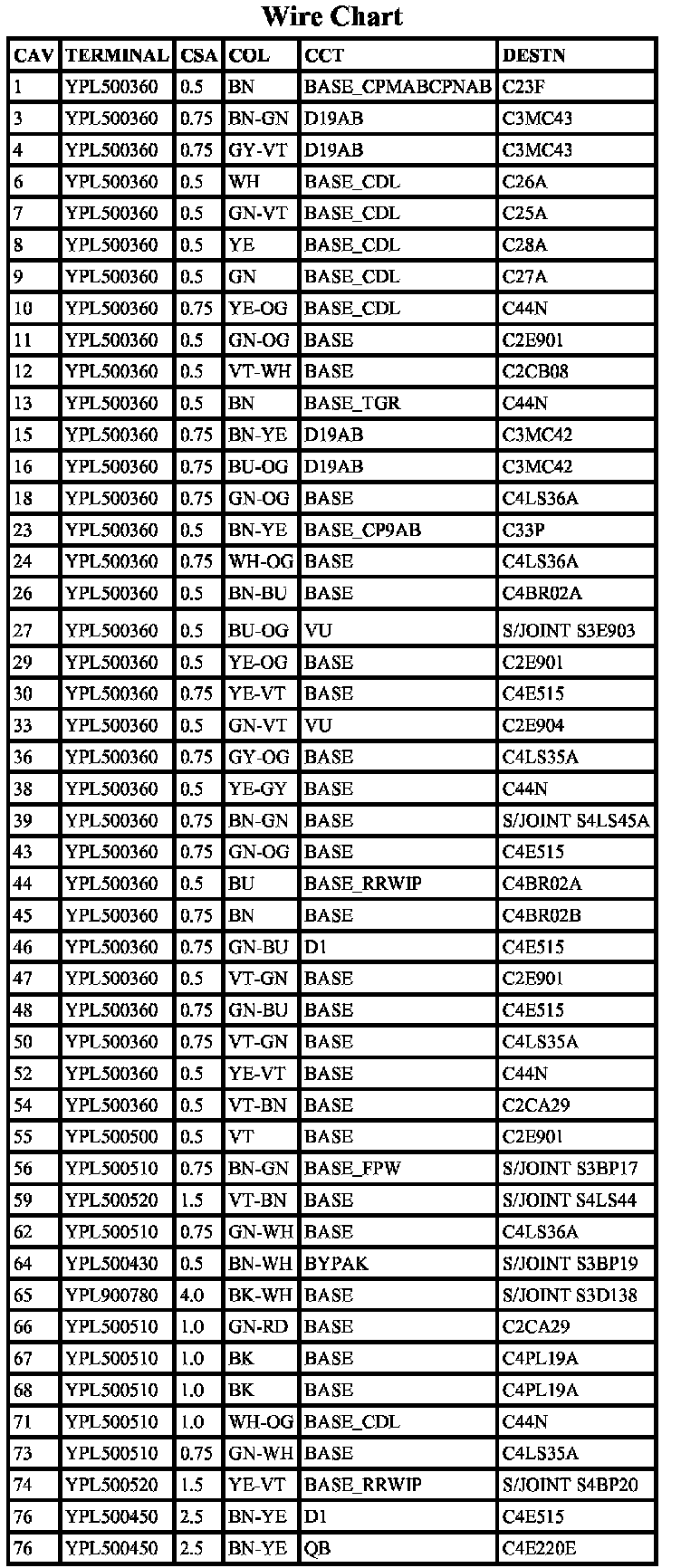

C1BP02B (Part 1):
C1BP02B (Part 2):
