Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2008
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oil Temperature Sensor For ECM
>>
Sensor-Temperature and Oil Level
Sensor-Temperature and Oil Level

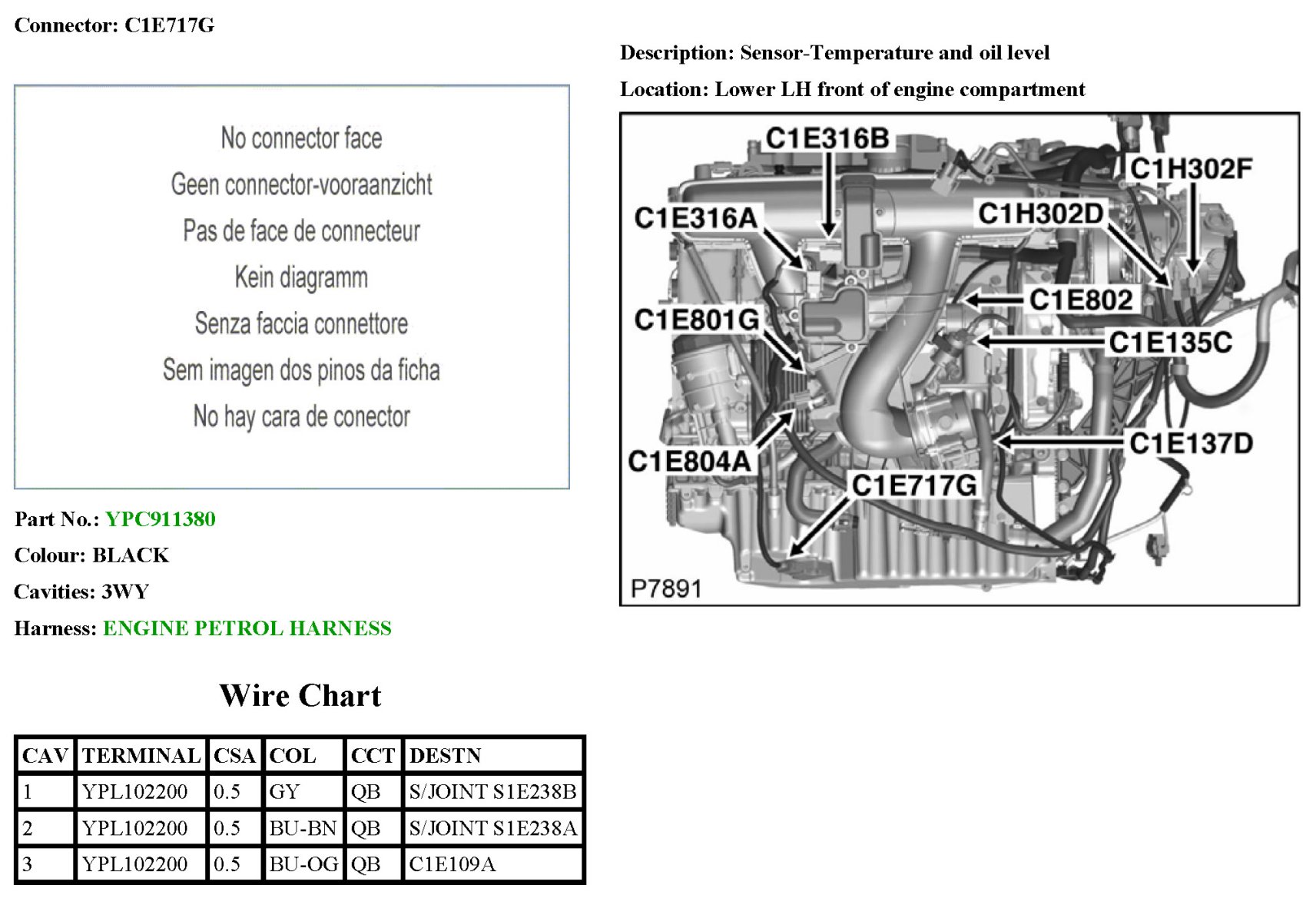

C1E717G:
