Home
>>
Land Rover
>>
2008
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch

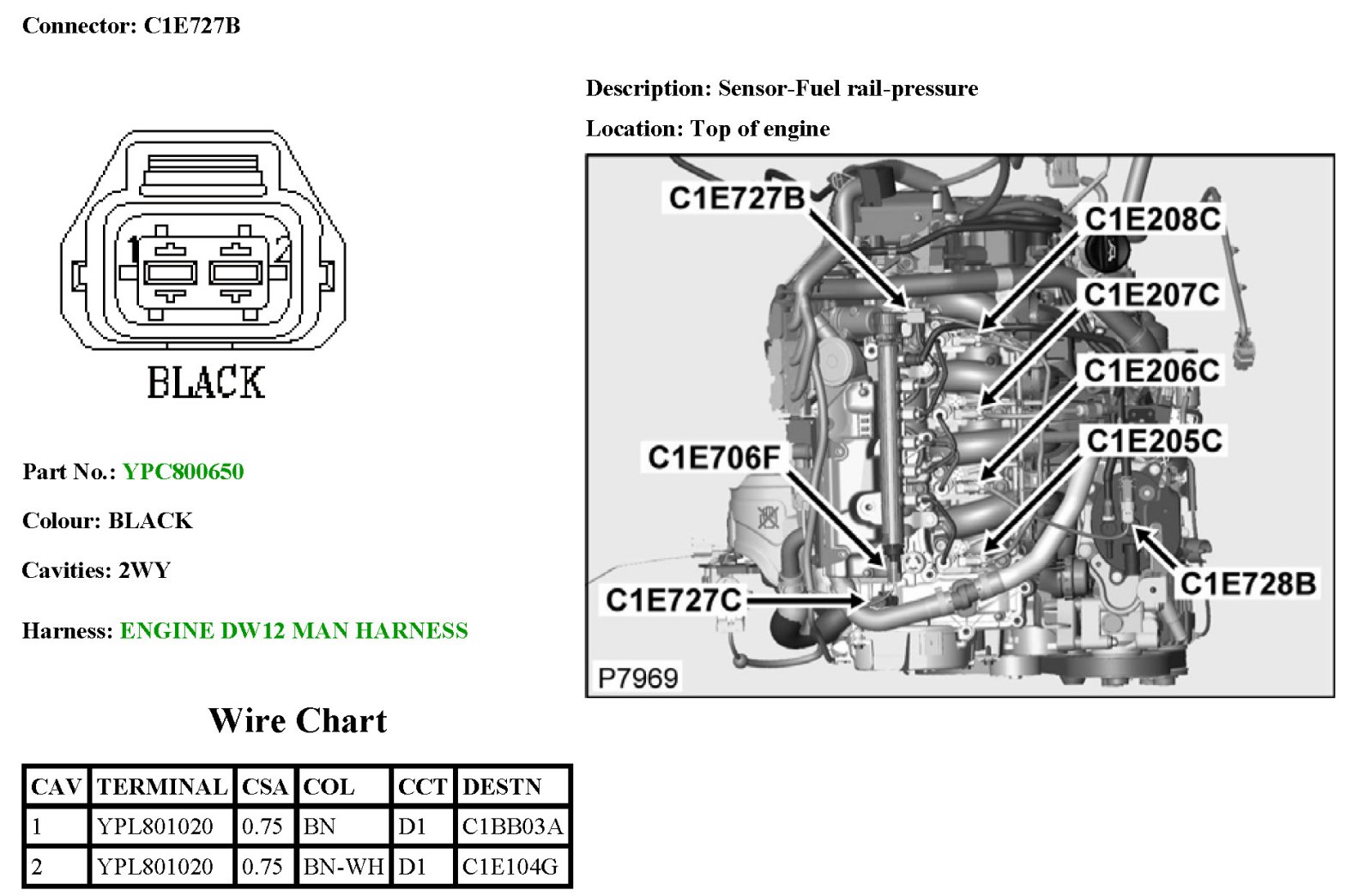

C1E727B:

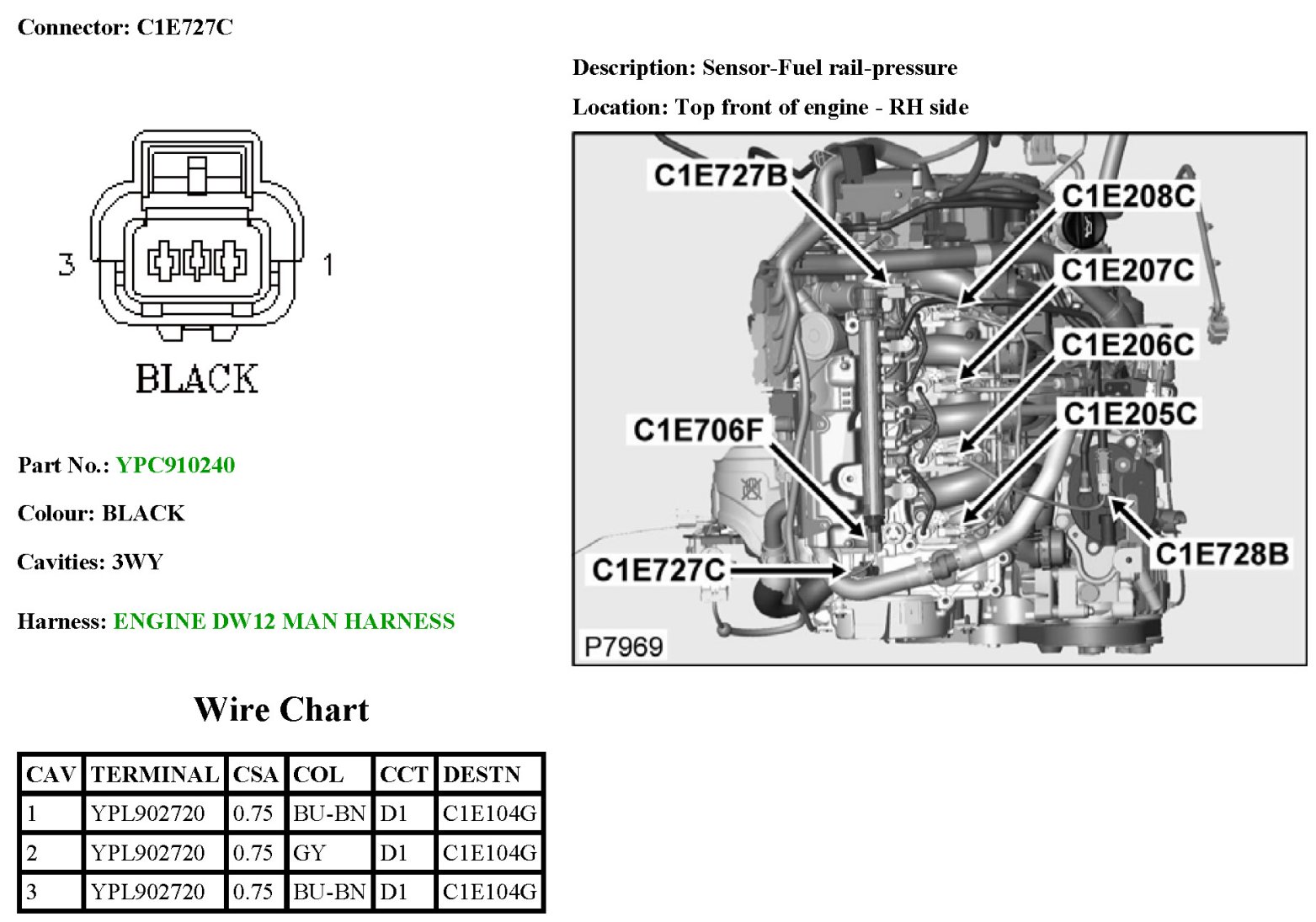

C1E727C:
