Brake Pedal and Bracket

Brake Pedal and Bracket

Service Repair No - 70.35.01

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Make the SRS system safe.
2. Remove the driver lower air bag module.
3. Remove the throttle pedal assembly.

4.

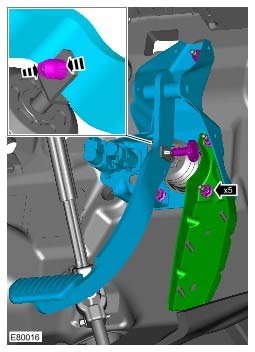

5. Remove the brake pedal assembly.

Torque:
25 Nm





6. NOTE: Do not disassemble further if the component is removed for access only.

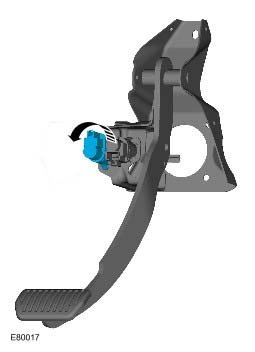

Remove the stoplamp switch.

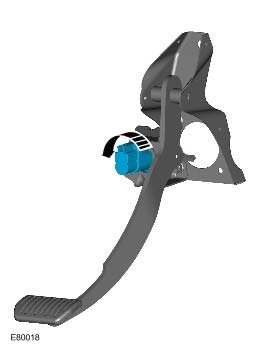

7. Remove the speed control deactivation switch.





Installation

1. To install, reverse the removal procedure.
