Amplifier: Service and Repair

Subwoofer Amplifier

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the bluetooth module.

CAUTION:
^ Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
^ Make sure that the optical connectors are clean and free of foreign material.

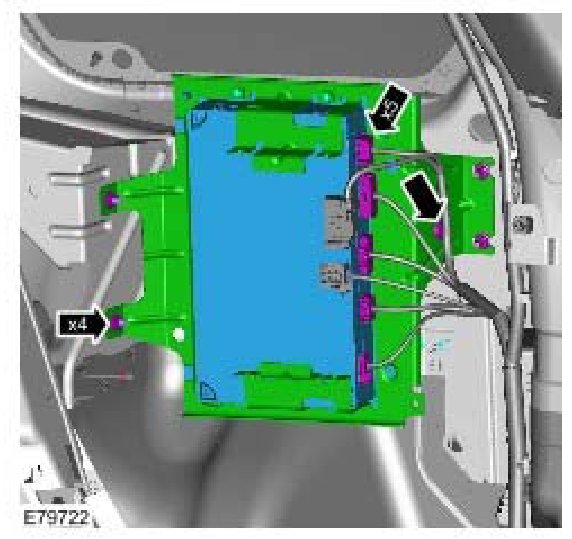

2. Torque: 10 Nm

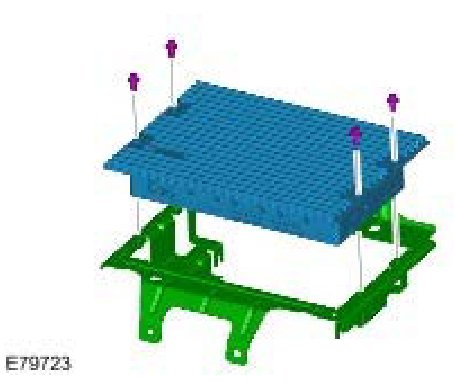

3. Torque: 10 Nm





Installation
1. To install, reverse the removal procedure.
