Differential Bearings

Differential Bearings

Service repair no - 41.20.17/01

Remove
1. Remove differential unit from transfer box.

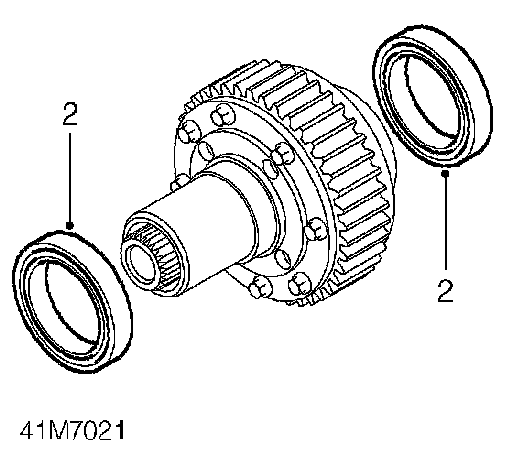

2. Using a suitable puller, remove 2 bearings from differential unit.

Refit
1. Ensure bearing and differential mating faces are clean.
2. Press bearings onto differential unit.
3. Fit differential unit to transfer box.
