Front Drive Halfshafts

Halfshaft Bearing

Service Repair No - 47.10.41

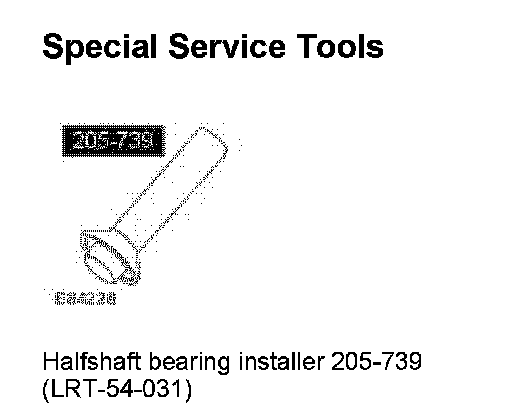

Special Service Tools





Removal

1. Remove and discard the RH halfshaft seal.
2. Remove the halfshaft support bearing housing.
^ Remove the 4 bolts.
^ Remove and discard the O-ring seal.





NOTE:
Do not disassemble further if the component is removed for access only.

3. Remove the halfshaft bearing.

Installation
1. Using the special tool install the halfshaft bearing.
^ Lubricate the halfshaft bearing with clean differential oil.





2. Install the halfshaft support bearing housing.
^ Install a new O-ring seal.
^ Tighten the 4 bolts to 22 Nm (16 ft. lbs.).

3. Install the RH halfshaft seal.
