Tire Pressure Monitoring System Front Antenna
Tire Pressure Monitoring System Front AntennaService Repair No - 86.53.16
Removal
1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2. Remove the front wheel.
3. Release the front of the fender splash shield.
^ Remove the plastic nut.
^ Remove the 6 screws.

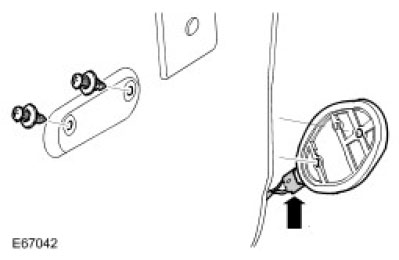

4. Remove the tire pressure antenna.
^ Disconnect the electrical connector.
^ Release the 2 clips.
Installation
1. Install the tire pressure antenna.
^ Install the 2 clips.
^ Connect the electrical connector.
2. Secure the fender splash shield.
^ Tighten the screws.
^ Tighten the nut.
3. Install the front wheel.
^ Tighten the wheel nuts to 140 Nm (103 ft. lbs.).
