Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Description and Operation
>>
Control Diagram
Control Diagram

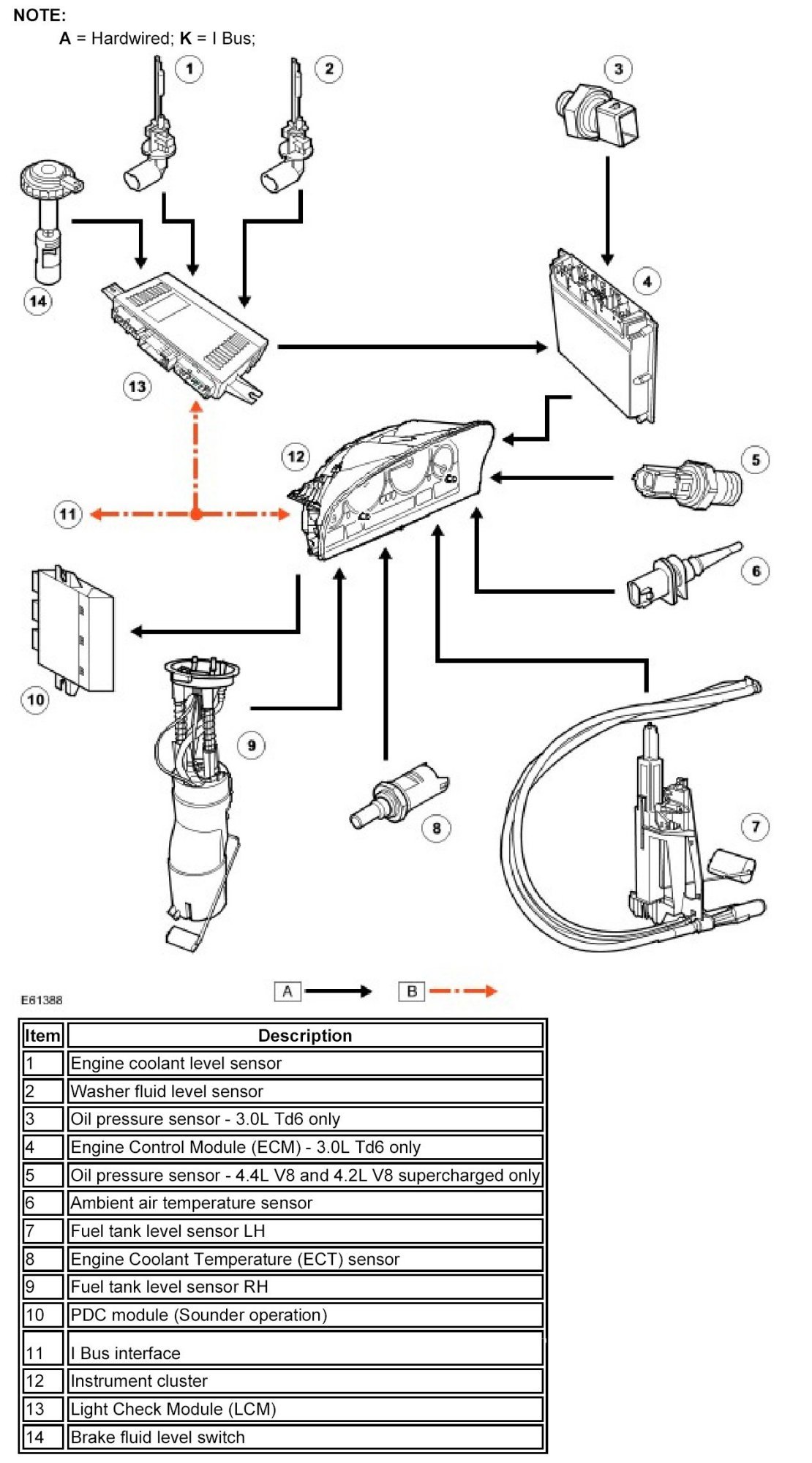

INSTRUMENT CLUSTER CONTROL DIAGRAM - SHEET 1 OF 2
INSTRUMENT CLUSTER CONTROL DIAGRAM - SHEET 2 OF 2
