Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor >> Motor-Wiper-Rear Screen

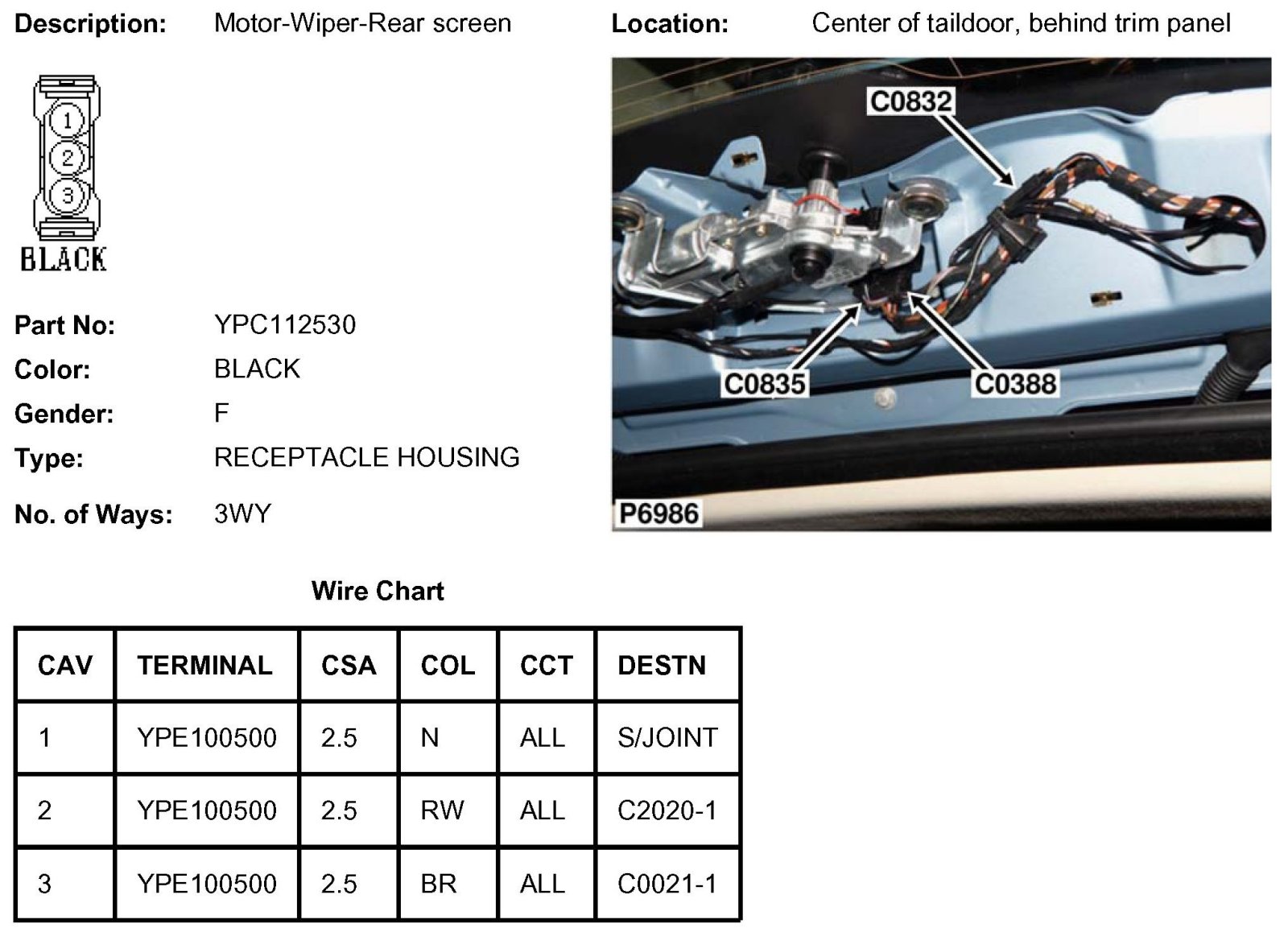

Motor-Wiper-Rear Screen

C0388:



C0835:
