Land Rover
>>
2007
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Lock Actuator
>>

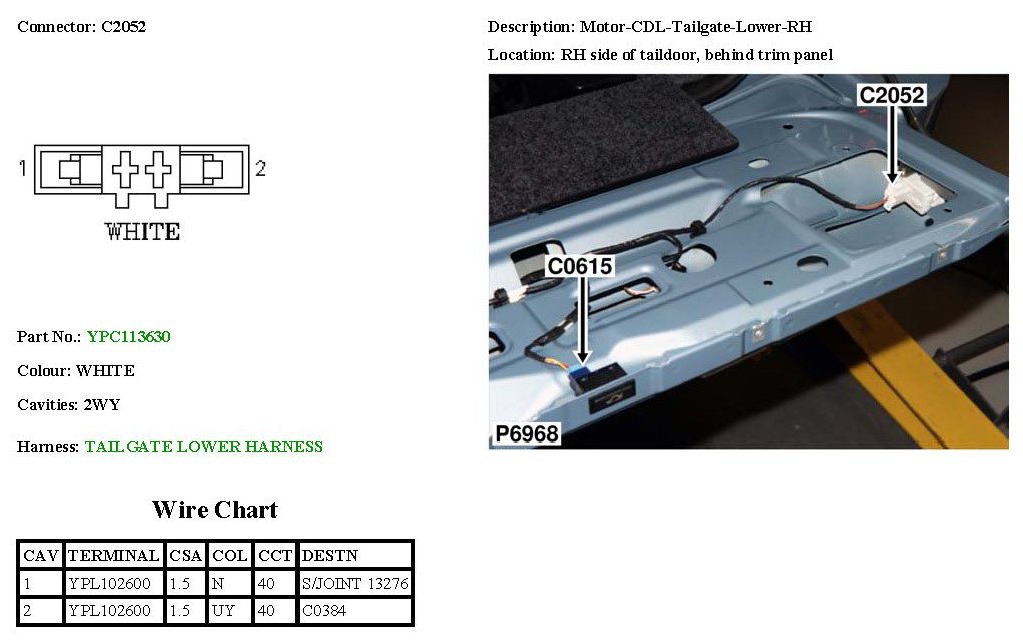

Motor-CDL-Tailgate-Lower-RH
Motor-CDL-Tailgate-Lower-RH
C2052:
