Land Rover
>>
2007
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Switch-Steering Column-Lighting
Switch-Steering Column-Lighting

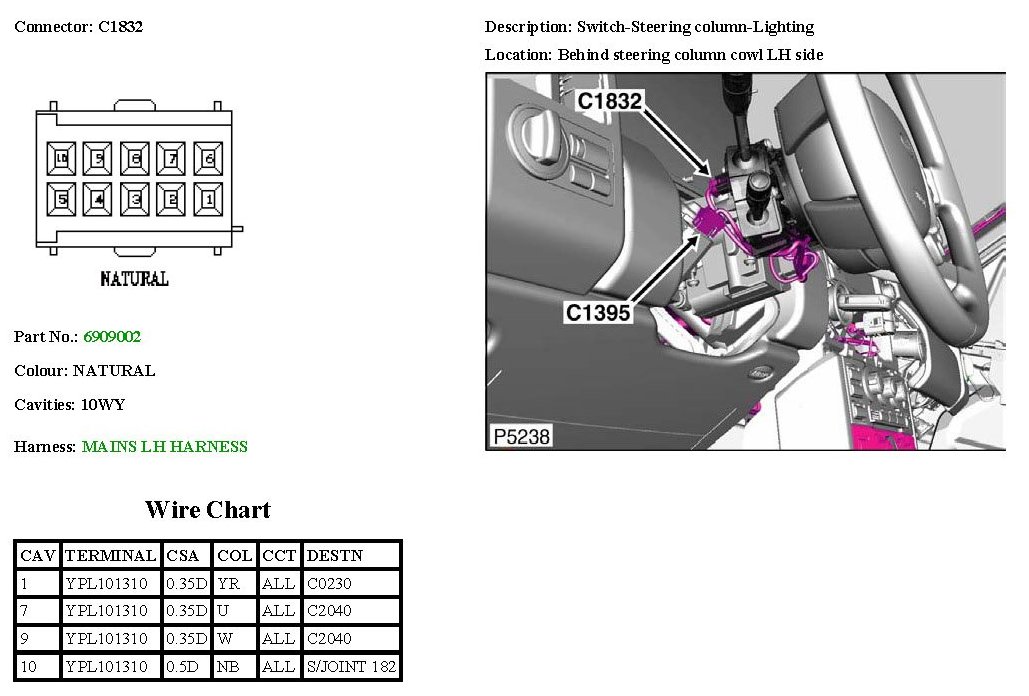

C1832:
