Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> C0001 - C0100 >> C0040

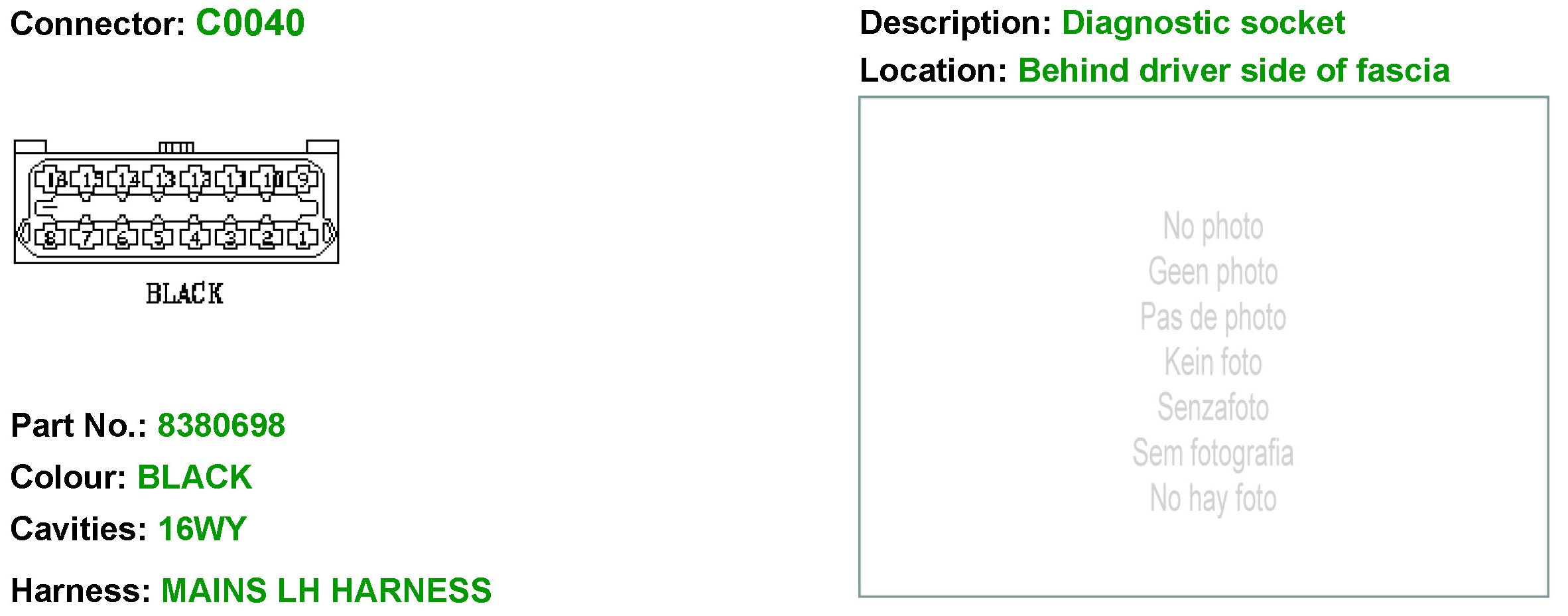

C0040

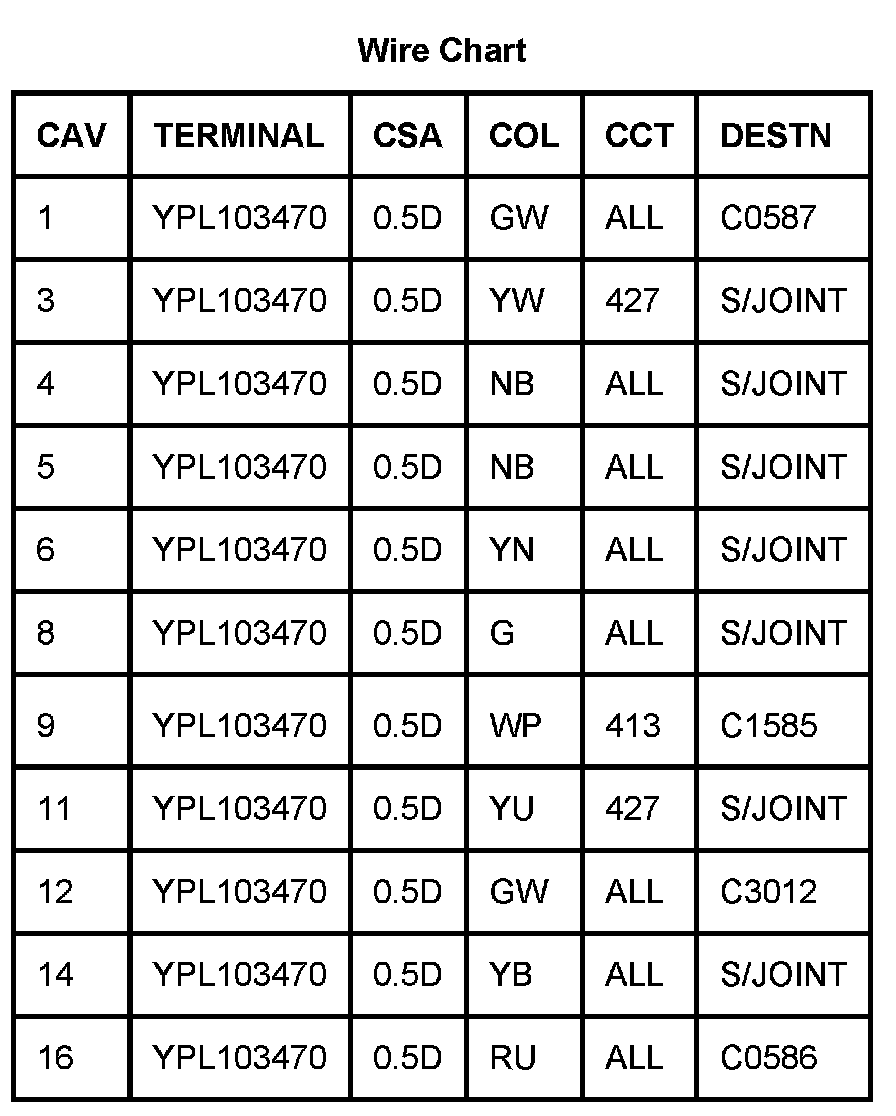

C0040 (Part 1):

C0040 (Part 2):
