Brake Pedal and Bracket - Vehicles With: Automatic Transmission

Brake Pedal and Bracket - Vehicles With: Automatic Transmission

Service Repair No - 70.35.03

Removal
1. Disconnect the battery negative cable.

NOTE: LH illustration shown, RH is similar

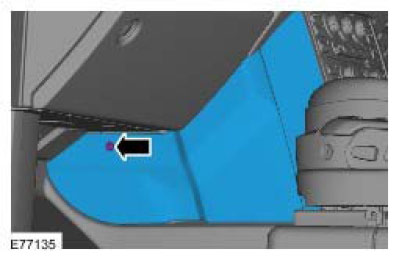

2. Remove the floor console extension.
^ Remove the screw
^ Release the 2 clips

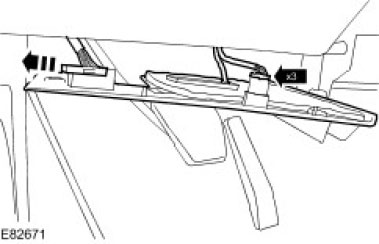

3. Remove the driver side closing trim panel.
^ Remove the 3 screws
^ Disconnect the footwell lamp electrical connector
^ Release the vehicle diagnostic socket

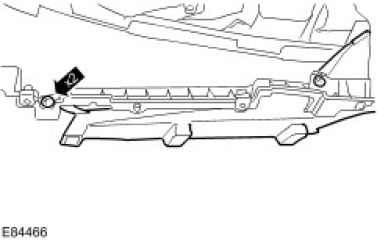

4. Remove the driver side footwell duct.
^ Remove the 2 screws





5. Release the brake booster push rod from the brake pedal.
^ Remove the clip
^ Remove the pin

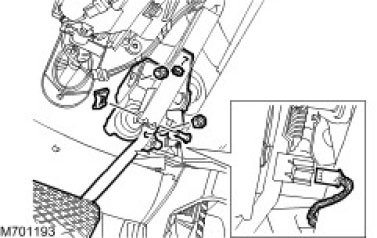

6. Remove the brake pedal and bracket.
^ Disconnect the stoplamp switch electrical connector
^ Remove and discard the 3 nuts
^ Reposition the brake booster and brake master cylinder

NOTE: Do not disassemble further if component is removed for access only

7. Remove the stoplamp switch.
^ Release the clip
8. Remove the stoplamp switch bracket.
^ Remove the 2 nuts and 2 bolts
^ Remove the brake pedal return spring

Installation
1. Install the stoplamp switch bracket.
^ Install the brake pedal return spring
^ Tighten the nuts and bolts to 10 Nm (7 ft. lbs.)
2. Install the stoplamp switch.
^ With the brake pedal released, make sure the stoplamp switch is in contact with the brake pedal.

WARNING: Make sure new nuts are installed

CAUTION: The nuts must be re-torqued after 20 minutes

3. Install the brake pedal and bracket.
^ Reposition the brake booster and brake master cylinder
^ Tighten the nuts to 26 Nm (19 ft. lbs.)
4. Secure the brake booster push rod to the brake pedal.
^ Install the pin
^ Install the clip
5. Install the driver side footwell duct.
^ Tighten the screws
6. Install the driver side closing trim panel.
^ Connect the footwell lamp electrical connector
^ Secure the vehicle diagnostic socket
^ Tighten the screws
7. Install the floor console extension.
^ Secure the clips
^ Tighten the screw
8. Connect the battery negative cable
