Brake Pedal - Vehicles With: Automatic Transmission

Brake Pedal - Vehicles With: Automatic Transmission

Service Repair No - 70.35.01

Removal
1. Remove the headlamp switch.
2. Remove the stoplamp switch.
3. Remove the instrument panel access panel.
^ Release the 2 clips

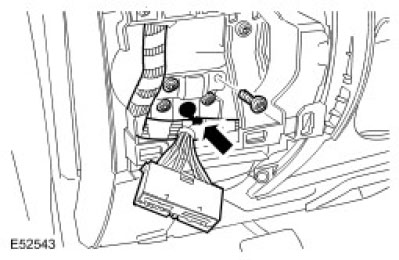

4. Remove the brake pedal bracket.
^ Release the wiring harness clip
^ Remove the 4 Torx bolts

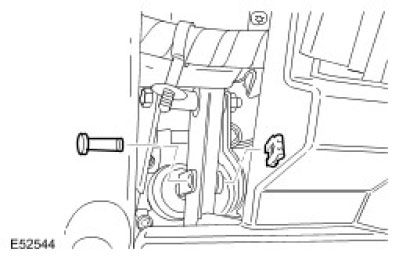

5. Remove the brake pedal clevis pin.
^ Remove the clip

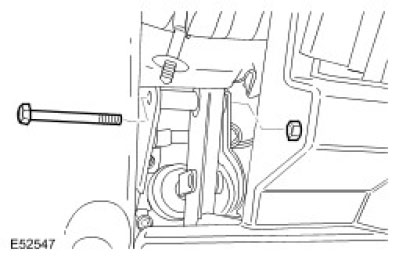

6. Remove the brake pedal.
^ Remove the nut and bolt





NOTE: Do not diassemble further if component is removed for access only

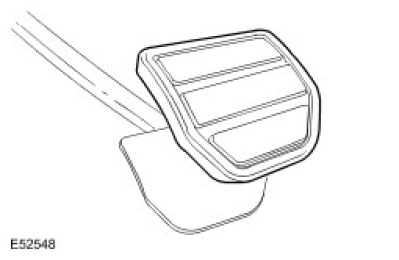

7. Remove the brake pedal pad.





Installation
1. Install the brake pedal pad.
2. Install the brake pedal.
^ Clean the component mating faces
^ Tighten the nut and bolt to 45 Nm (33 ft. lbs.)
3. Install the brake pedal clevis pin.
^ Install the clip
4. Install the brake pedal bracket
^ Tighten the Torx bolts to 10 Nm (7 ft. lbs.)
^ Secure the wiring harness
5. Install the instrument panel access panel.
^ Secure with clips
6. Install the stoplamp switch.
7. Install the headlamp switch.
