Roof Opening Panel Glass

Roof Opening Panel Glass

Service Repair No - 76.84.03

Removal

1. Open the roof opening panel shield.
2. Raise the roof opening panel glass.
3. Release the upper edges of the RH and LH roof opening panel side trims.







4. Remove the RH and LH roof opening panel side trims.
^ Release the front of the RH and LH roof opening panel side trims and slide forwards.

5. Remove the roof opening panel glass.

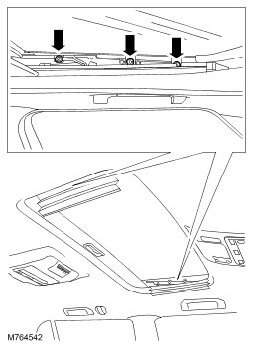

^ Remove the 6 screws.







Installation

1. Install the roof opening panel glass.
^ Tighten the screws to 6 Nm (4 ft. lbs.).

2. Align the roof opening panel glass to the roof.
3. Install the RH and LH roof opening panel side trims, starting with the rear ends.
4. Secure the upper edges of the RH and LH roof opening panel side trims.
