Roof Opening Panel

Roof Opening Panel

Service Repair No - 76.84.01

Removal

WARNING:
^ Persons working on the supplemental restraint system (SRS) must be fully trained and have been issued with the safety guidelines.
^ Allow a period of 10 minutes to elapse after disconnecting the battery before undertaking any work on the SRS.
^ The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
^ The correct procedures must always be used when working on SRS components.
^ It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
^ Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
^ Take extra care when handling SRS components.

1. Disconnect the battery ground cable.
2. Make the air bag supplemental restraint system (SRS) safe.
3. Remove the headliner.
4. Release the roof opening panel drain tubes.







5. Release the wiring harness from the roof opening panel.
6. Disconnect the roof opening panel motor electrical connector.

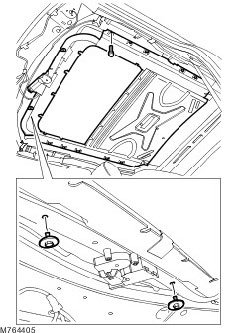

7. Remove the screw from the roof opening panel motor and the roof opening panel.
8. Remove the 2 bolts from the front of the roof opening panel.
^ Remove the 2 washers.







9. With assistance, remove the roof opening panel.
^ Remove the 10 bolts.

Installation

1. Clean the roof opening panel and mounting surface.
2. With assistance, install the roof opening panel.
^ Install the bolts and tighten to 10 Nm (7 ft. lbs.).

3. Install the screw to the roof opening panel motor and the roof opening panel.
^ Tighten to 6 Nm (4 ft. lbs.).

4. Connect the electrical connector to the roof opening panel motor.
5. Secure the wiring harness to the roof opening panel.

6. NOTE: Make sure the roof opening panel drain tubes are free from any debris.

Secure the roof opening panel drain tubes.

7. Install the headliner.
8. Connect the battery ground cable.
