Drink Holders: Service and Repair

Floor Console Cup Holder

Removal
1. Disconnect the battery ground cable.
2. Remove the floor console upper panel.

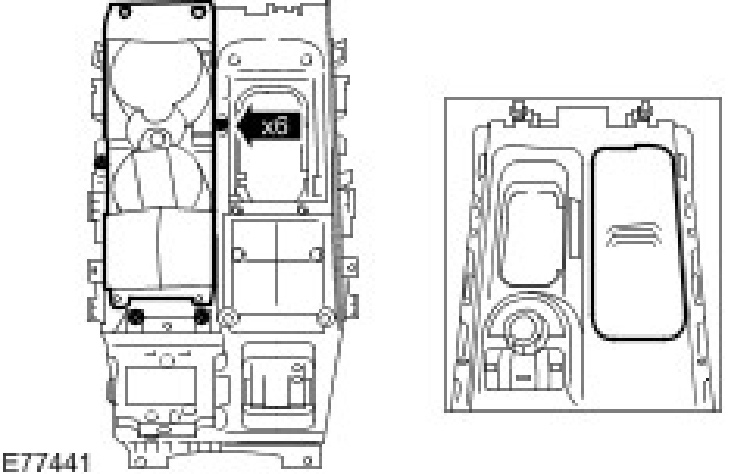

3. Remove the floor console cup holder.
^ Remove the 6 screws.





Installation
1. Install the floor console cup holder.
^ Install the 6 screws.
2. Install the floor console upper panel.
3. Connect the battery ground cable.
