Tailgate Speaker

Tailgate Speaker

Service Repair No = 86.50.47

Removal
1. Remove the tailgate trim panel.

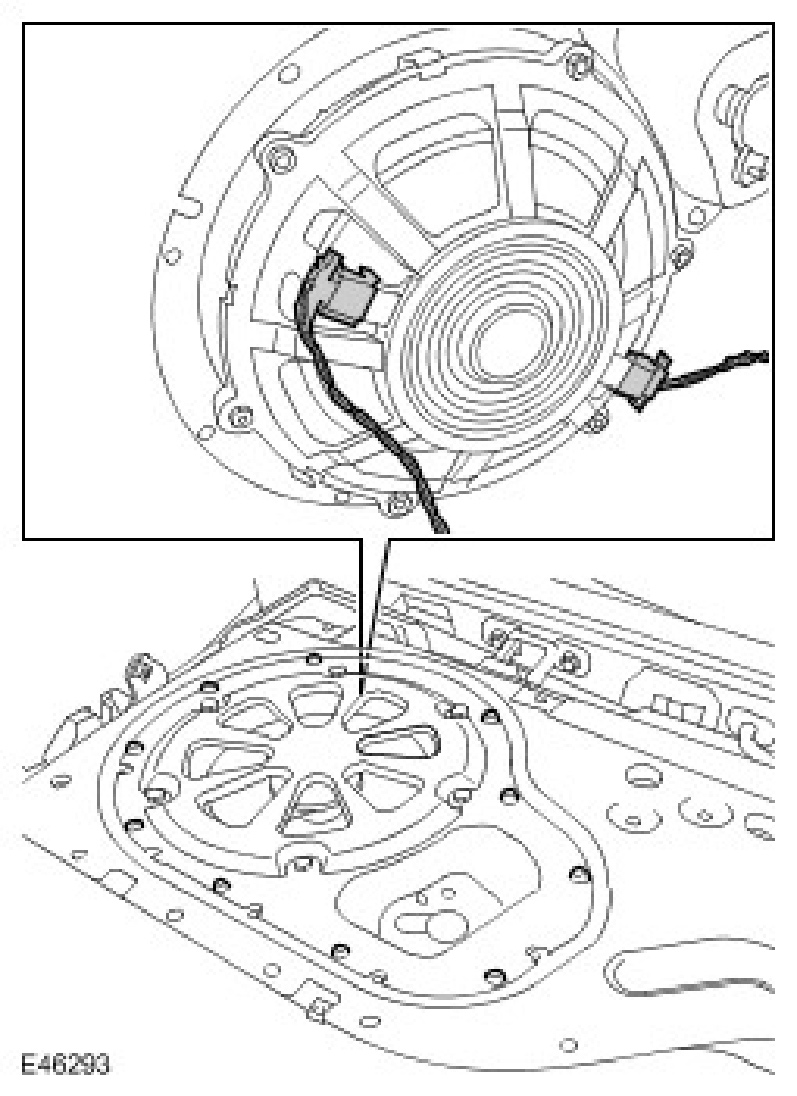

2. Remove the tailgate speaker assembly.
^ Remove the 10 Torx bolts.
^ Disconnect the 2 electrical connectors.





NOTE: Do not disassemble further if the component is removed for access only.

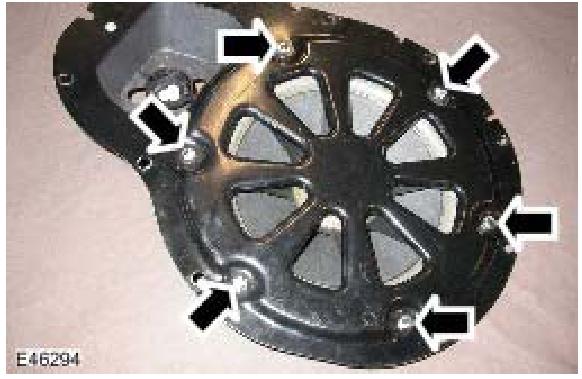

3. Remove the tailgate speaker.
^ Remove the 6 bolts.





Installation
1. Install the tailgate speaker.
^ Tighten the bolts to 10 Nm (7 ft. lbs.).
2. Install the tailgate speaker assembly.
^ Connect the electrical connectors.
^ Tighten the Torx bolts to 10 Nm (7 ft. lbs.).
3. Install the tailgate trim panel.
