Instrument Panel Speaker



Instrument Panel Speaker

Service Repair No - 86.50.11

Removal

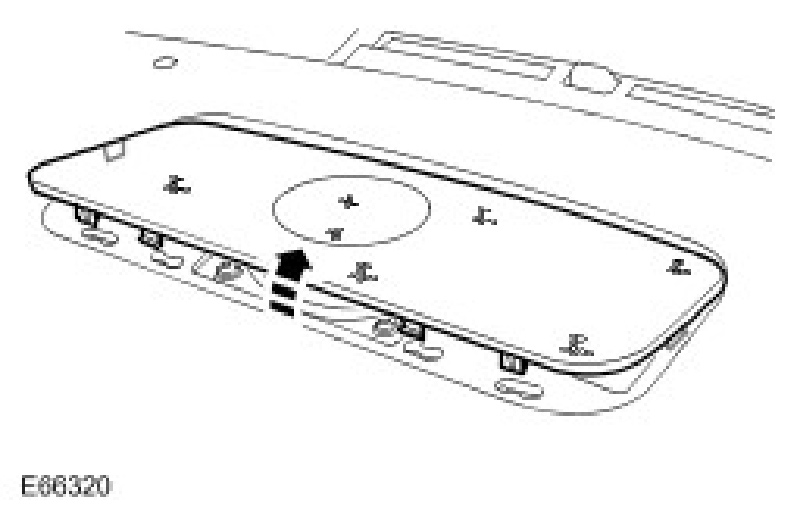

1. Remove the instrument panel center speaker grille.

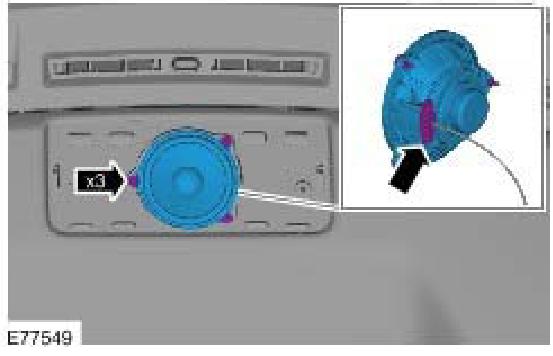

2. Remove the instrument panel speaker.
^ Remove the 3 screws.
^ Disconnect the electrical connector.





Installation
1. Install the instrument panel speaker.
^ Connect the electrical connector.
^ Tighten the 3 screws.
2. Install the instrument panel center speaker grille.
