DSP Amplifier

DSP Amplifier

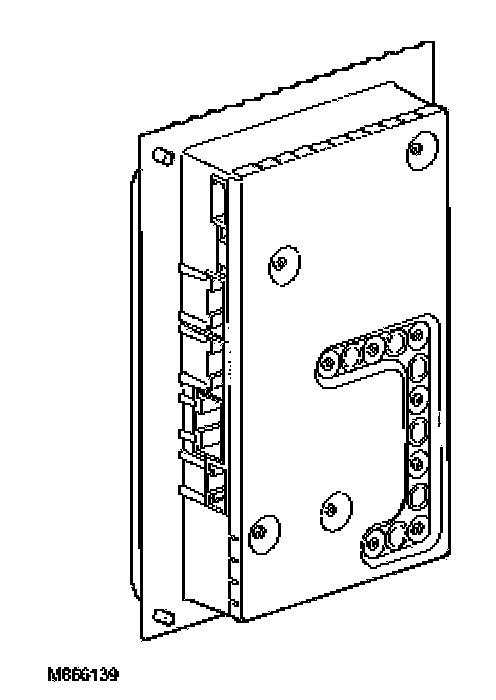

The Digital Sound Processor (DSP) amplifier is located in the rear LH (left-hand) side of the luggage compartment. The DSP amplifier drives eleven speakers; two front door mid-range, four front and rear door bass, four front and rear door tweeters on eight channels and a passive subwoofer. The amplifier produces 320 Watts of digital amplification to power the speakers.

DSP Amplifier Connector C0491







DSP Amplifier Connector C0492







DSP Amplifier Connector C0493







DSP Amplifier Connector C2102
