DVD Player: Service and Repair

Digital Versatile Disc (DVD) Player

Removal
1. Disconnect the battery ground cable.
2. Remove the access panel from the loadspace trim panel LH.
3. Remove the loadspace trim panel, floor stowage compartment LH access cover.
4. Raise and support the spare tire loadspace trim panel.
5. Remove the luggage tie down ring.
^ Remove the bolt.





6. Remove the 2 turn fasteners securing the LH finisher trim panel.
7. Remove the LH finisher trim panel.
8. Remove the lower turn fastener, securing the front loadspace trim panel LH.





9. Remove the trim clip securing the front loadspace trim panel LH to the floor stowage compartment.

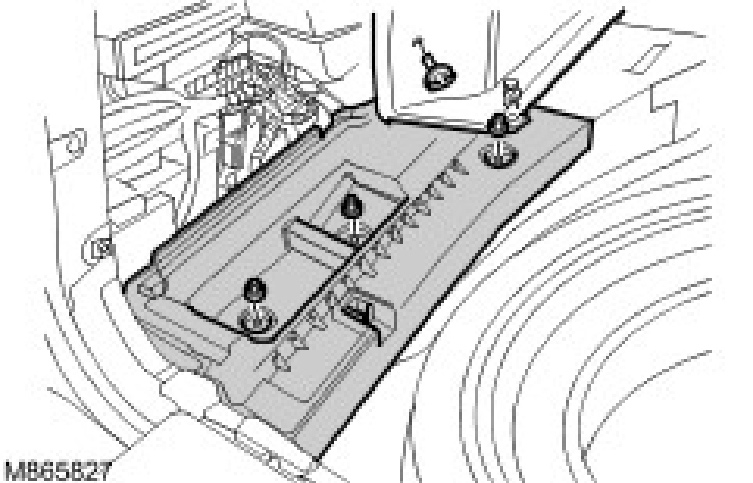

10. Remove the LH floor stowage compartment.
^ Remove the 3 nuts.

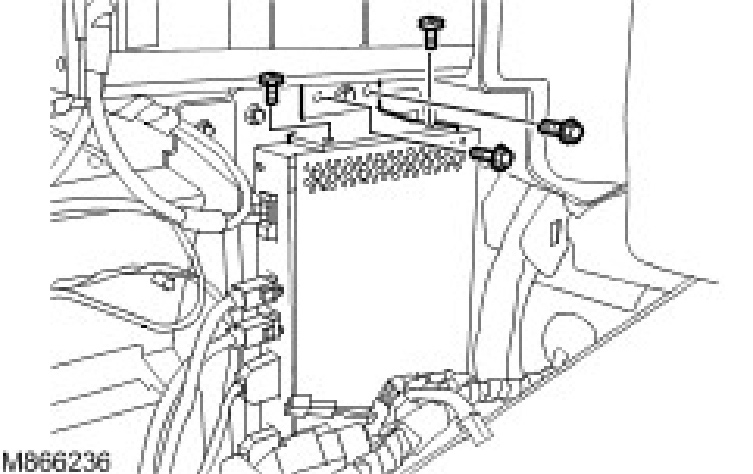

11. Remove the information and entertainment module upper bracket.
^ Remove the 2 nuts.
^ Remove the 2 bolts.





12. Release the information and entertainment module from its lower locating bracket.

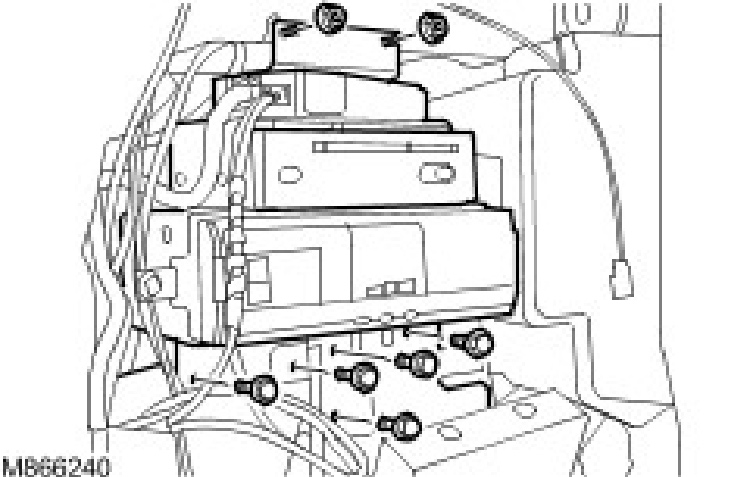

13. Release the information and entertainment assembly.
^ Remove the 5 bolts.
^ Remove the 2 nuts.





14. Reposition the information and entertainment assembly for access.

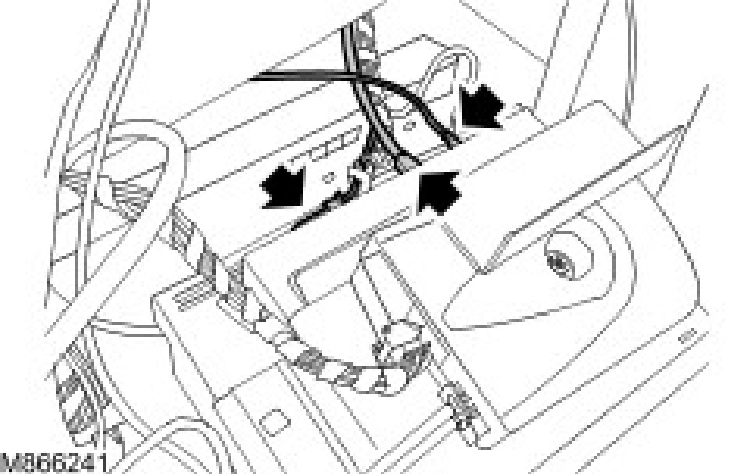

^ Disconnect the digital versatile disc (DVD) player coaxial connector.





CAUTION: Cover fibre optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.

15. Disconnect the DVD player optical connector.
16. Disconnect the DVD player electrical connector.
17. Remove the DVD player from the information and entertainment assembly mounting bracket.
^ Remove the 8 screws.





Installation
1. Install the DVD player to the information and entertainment assembly mounting bracket.
^ Install the screws.
2. Connect the DVD player electrical connector, coaxial connector and the optical connector.
3. Install the information and entertainment assembly.
^ Tighten the nuts and bolts to 10 Nm (7 ft. lbs.).
4. Secure the information and entertainment module into the lower locating bracket.
5. Install the information and entertainment module upper bracket.
^ Tighten the bolts to 10 Nm (7 ft. lbs.).
6. Install the LH floor stowage compartment.
^ Install the nuts.
7. Install the trim clip securing the front loadspace trim panel LH to the floor stowage compartment.
8. Install the lower turn fastener, securing the front loadspace trim panel to the floor stowage compartment.
9. Install the LH finisher trim panel.
^ Install the turn fasteners.
10. Install the luggage tie down ring.
^ Tighten the bolt to 25 Nm (18 ft. lbs.).
11. Lower and secure the spare tire loadspace trim panel.
12. Install the loadspace trim panel, floor stowage compartment LH access cover.
13. Install the access panel to the loadspace trim panel LH.
14. Using the Land Rover approved diagnostic equipment, follow the on-screen instructions and configure the DVD player.
