Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

Service Repair No - 57.15.08

Removal
1. Disconnect the battery ground cable.
2. Siphon the fluid from the power steering reservoir.





3. Release the power steering fluid reservoir from the retaining bracket.





4. CAUTION: Before disconnecting or removing the components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

NOTE: Some fluid spillage is inevitable during this operation.

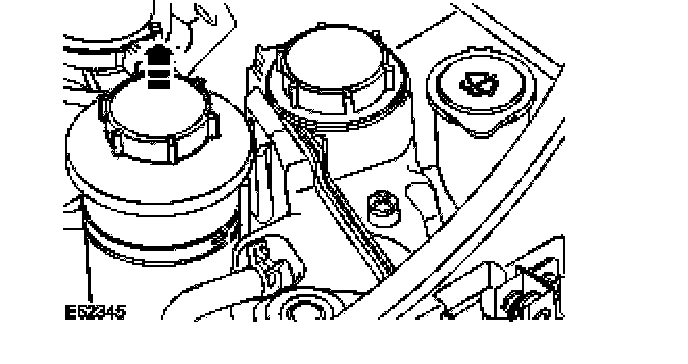

^ Remove the power steering fluid reservoir.
^ Position an absorbent cloth to collect fluid spillage.
^ Release the hose clips and disconnect the hoses.

Installation
1. To install, reverse the removal procedure.
2. Fill and bleed the power steering system.
