Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Position Sensor / Switch >> Locations >> RH

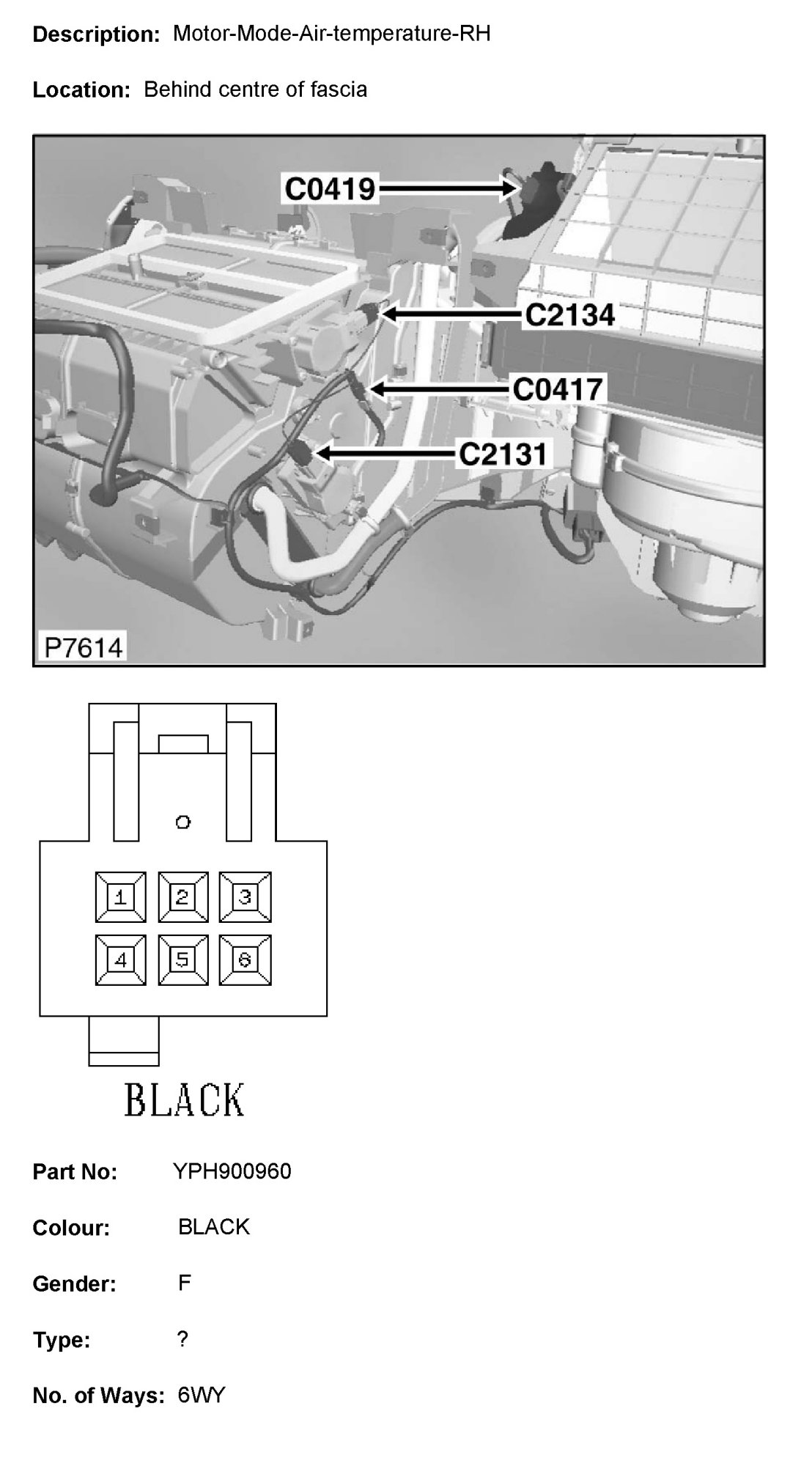

RH

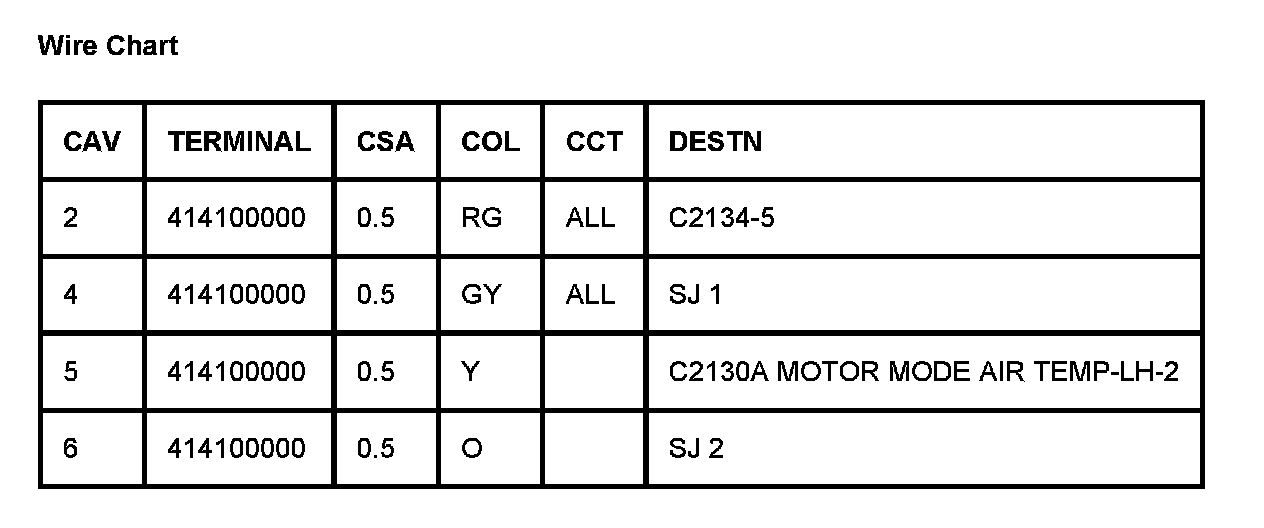

C2131 (Part 1):

C2131 (Part 2):
