Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

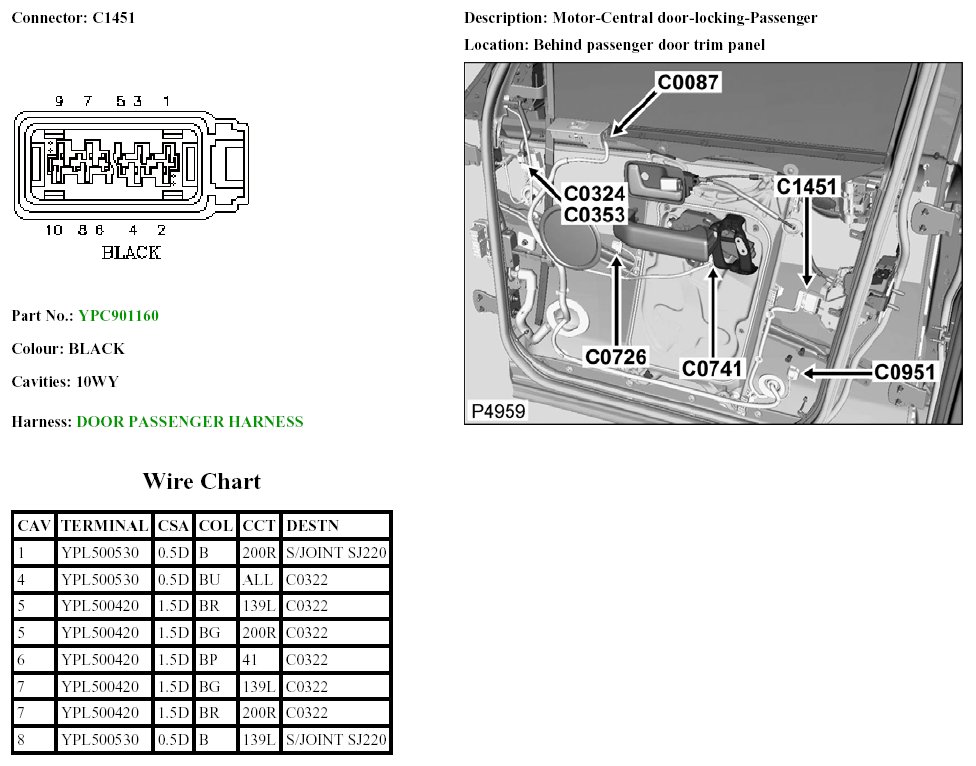

Power Door Lock Actuator
>>
Motor-Central Door-Locking-Passenger
Motor-Central Door-Locking-Passenger
Motor-Central Door-Locking-Passenger
C1451:
