Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Switch Pack-Center Facia
Switch Pack-Center Facia
Switch Pack-Center Facia

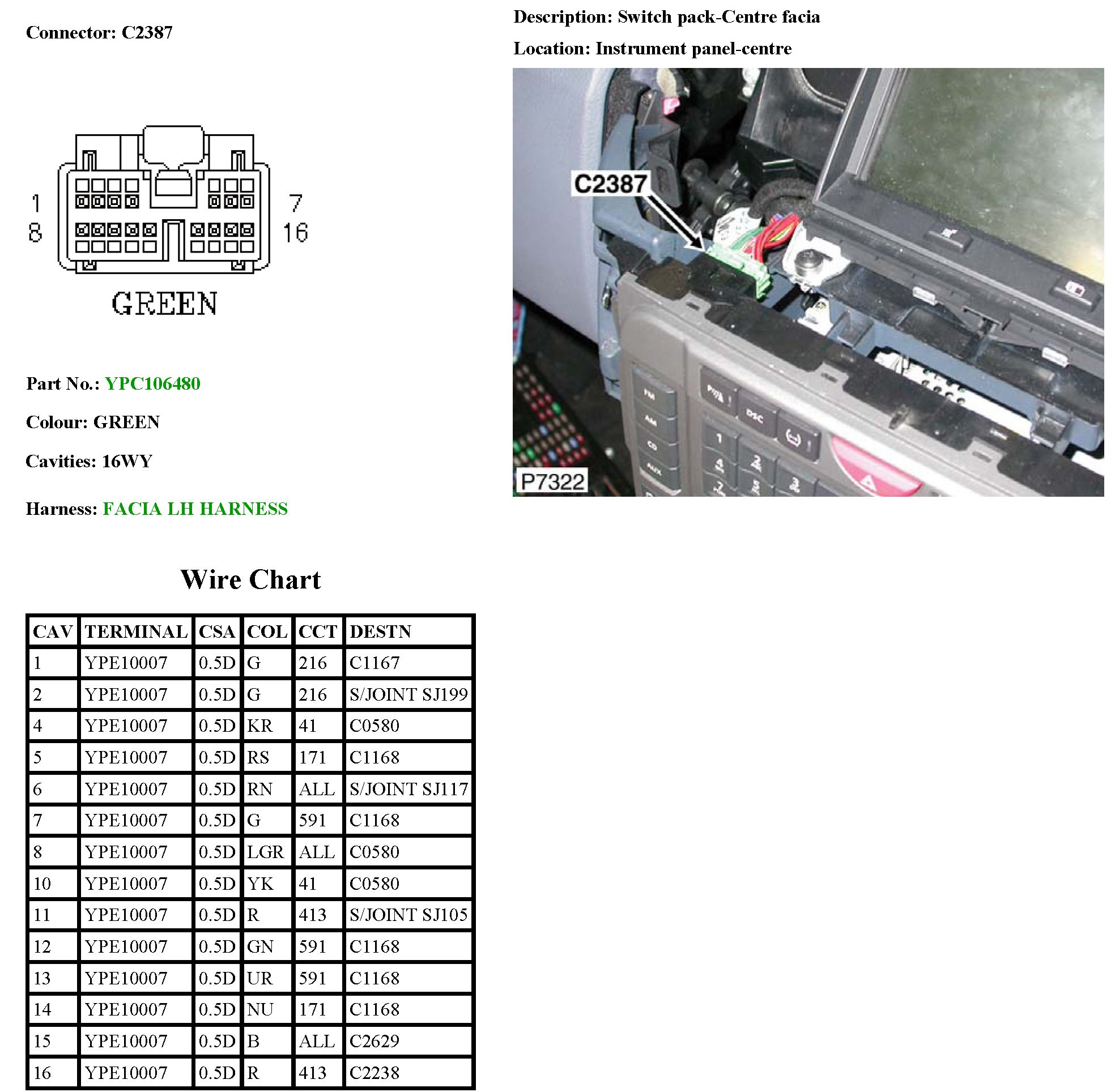

C2387:
