LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3001 - C3100
>>

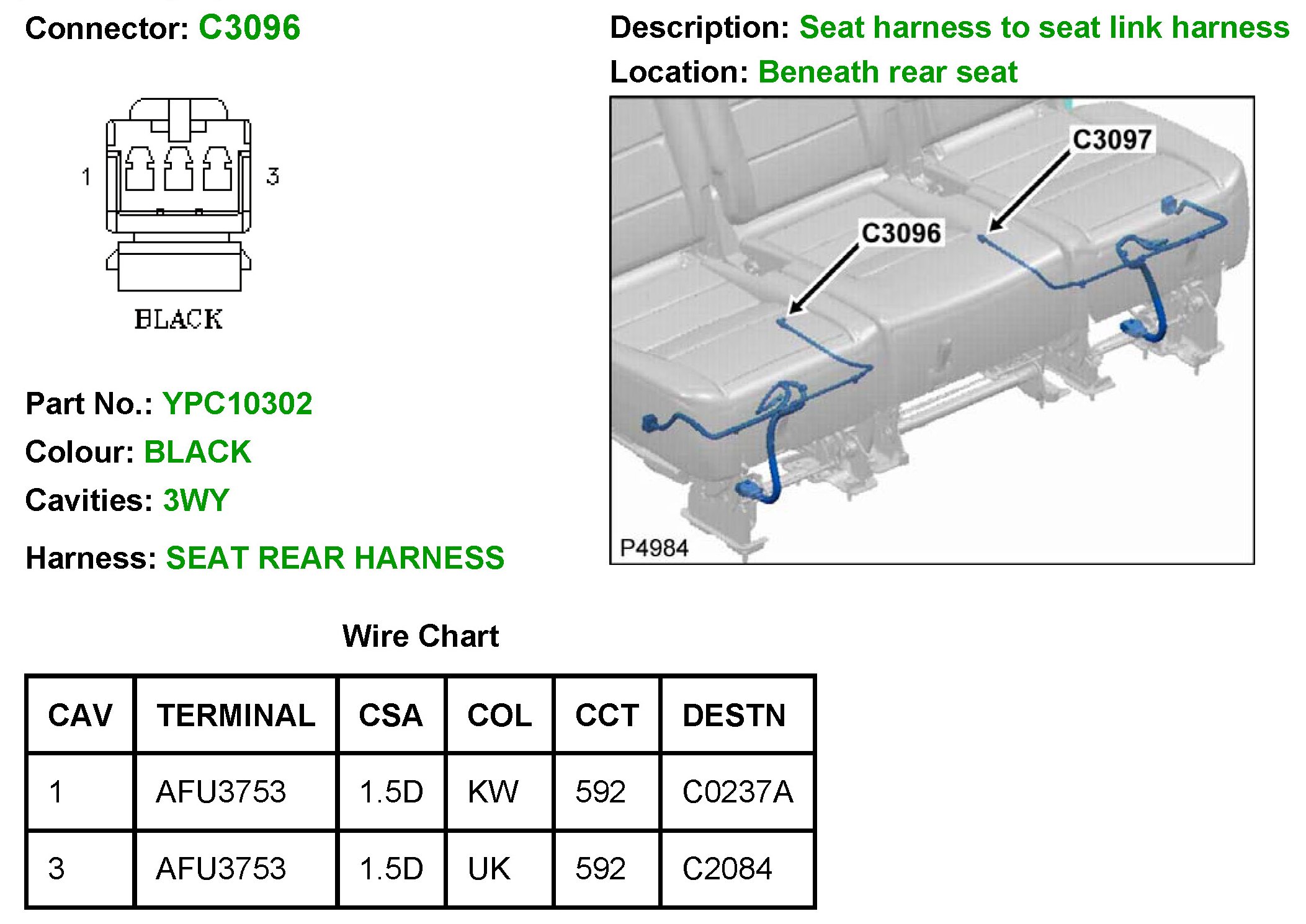

C3096
C3096
C3096:
C3096:
