Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2601 - C2700
>>

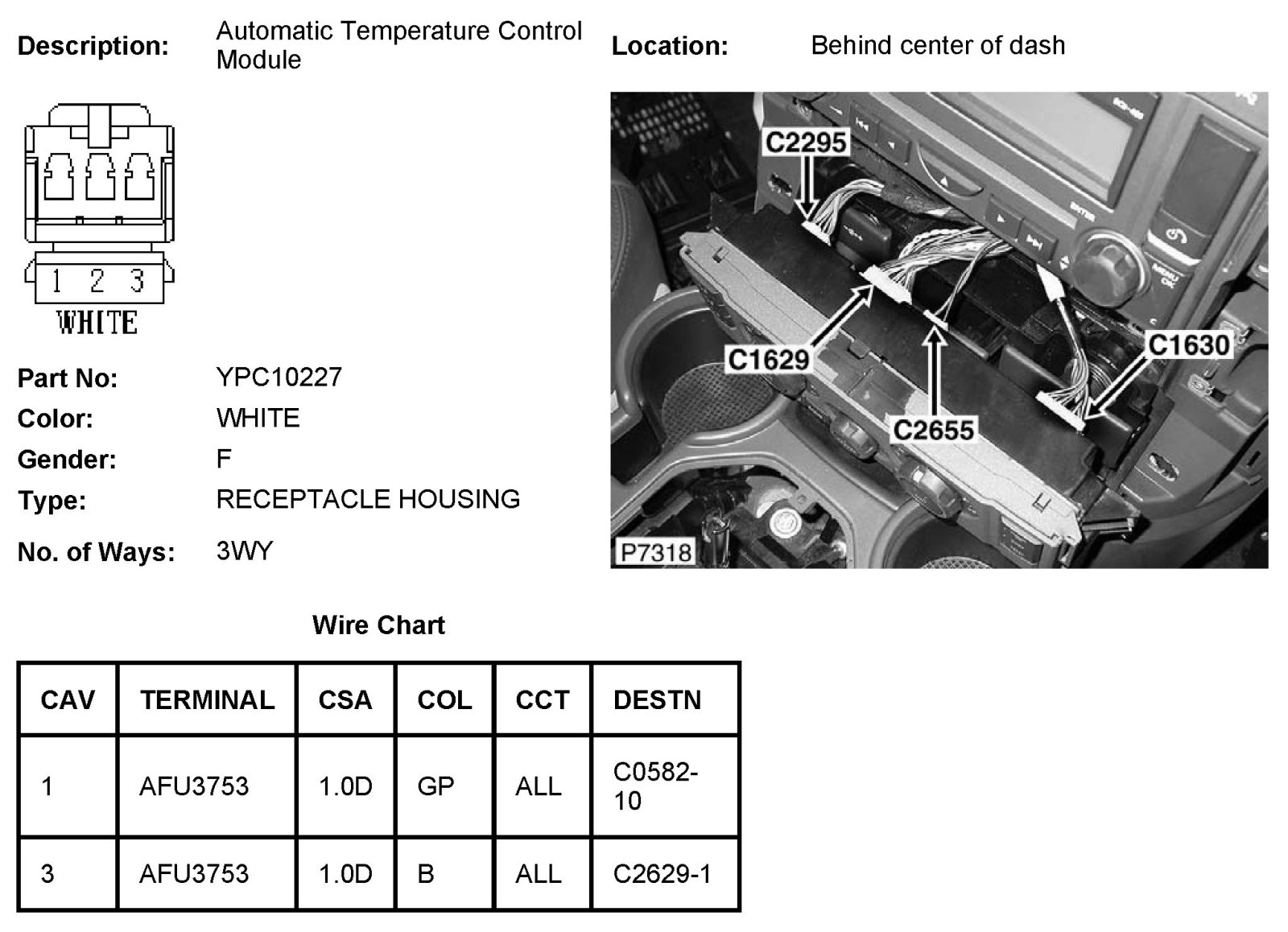

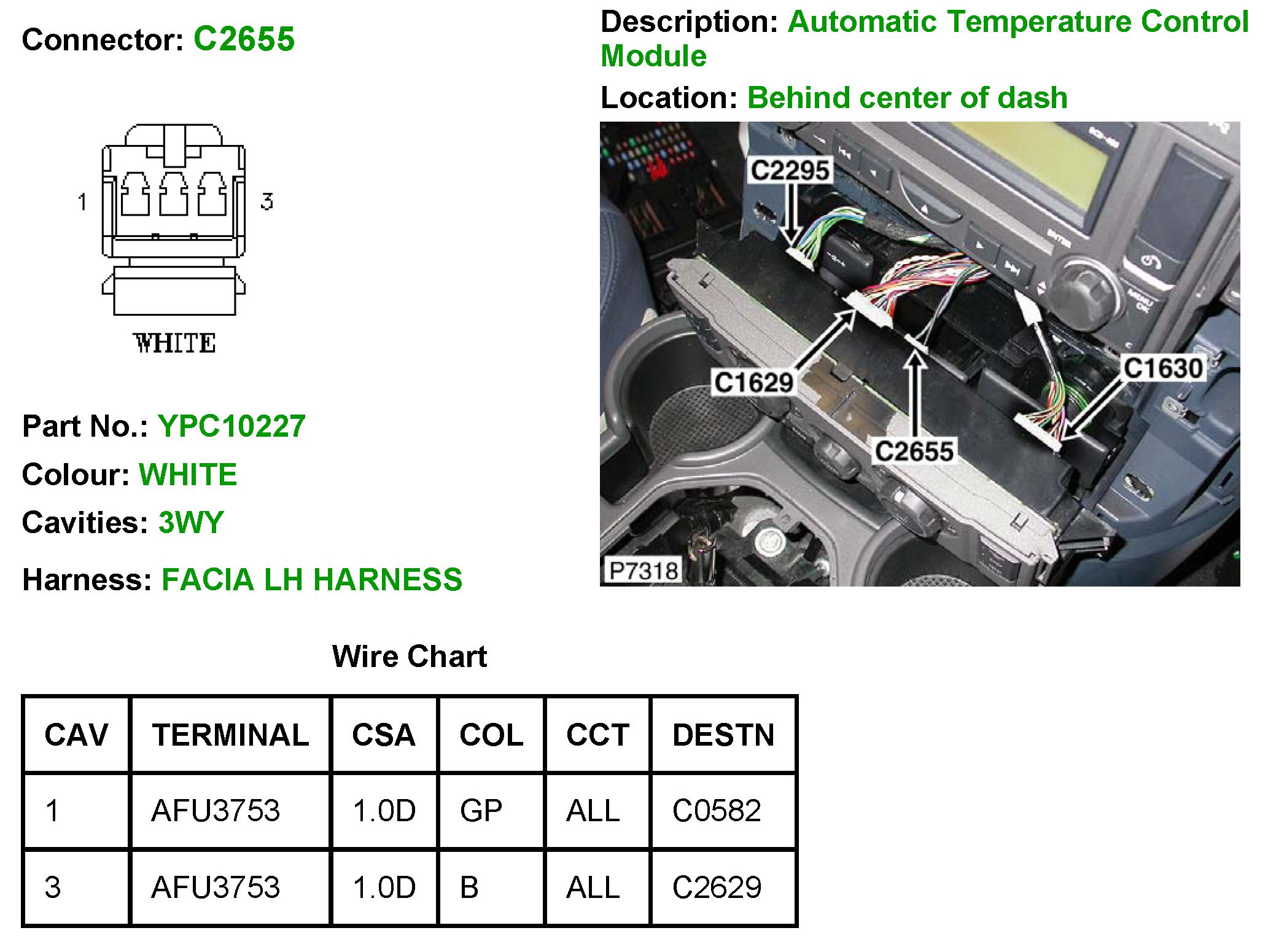

C2655
C2655
C2655:
C2655:
