Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2501 - C2600
>>
C2565
C2565

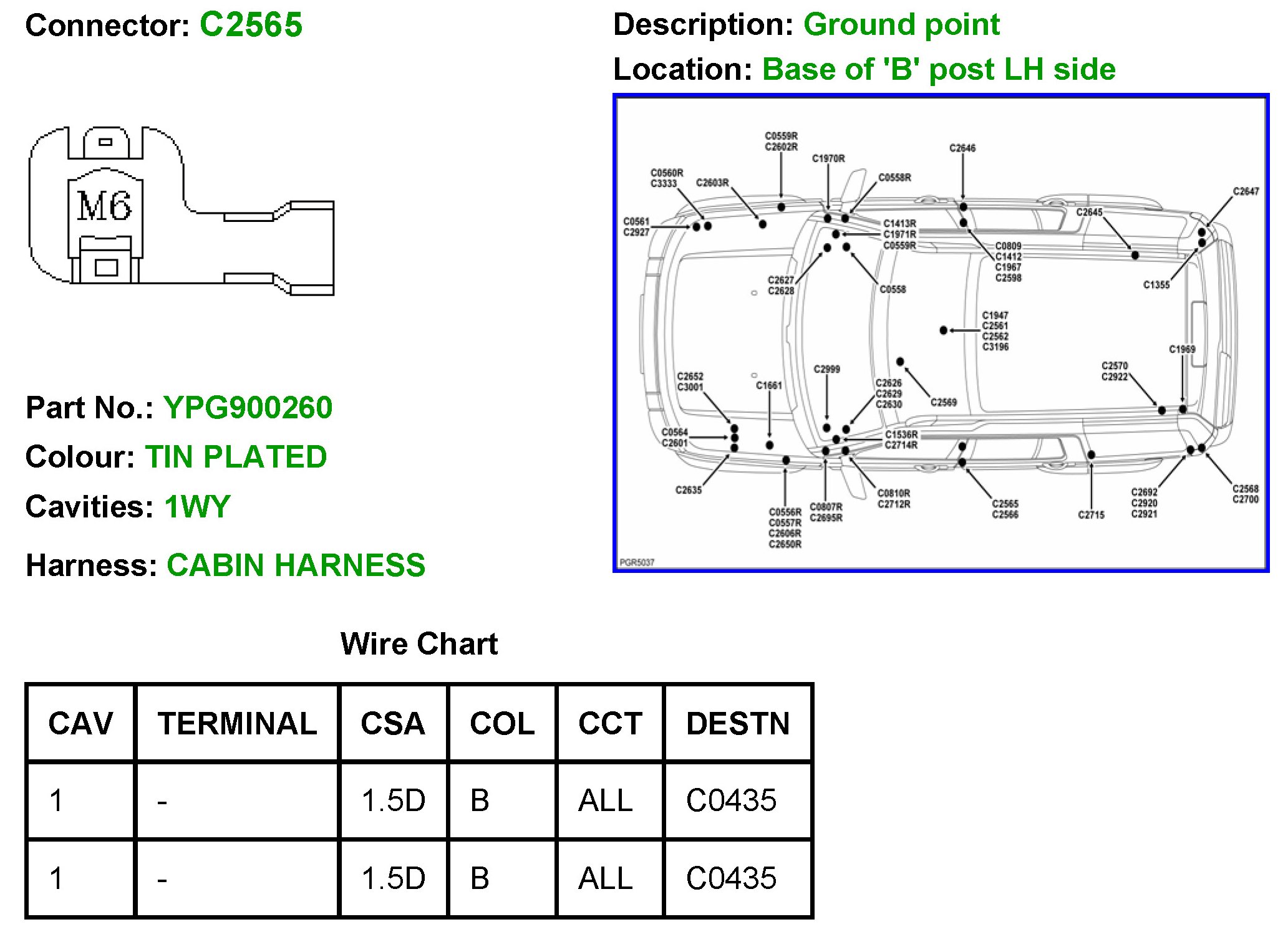

C2565:
C2565:
