Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1701 - C1800
>>

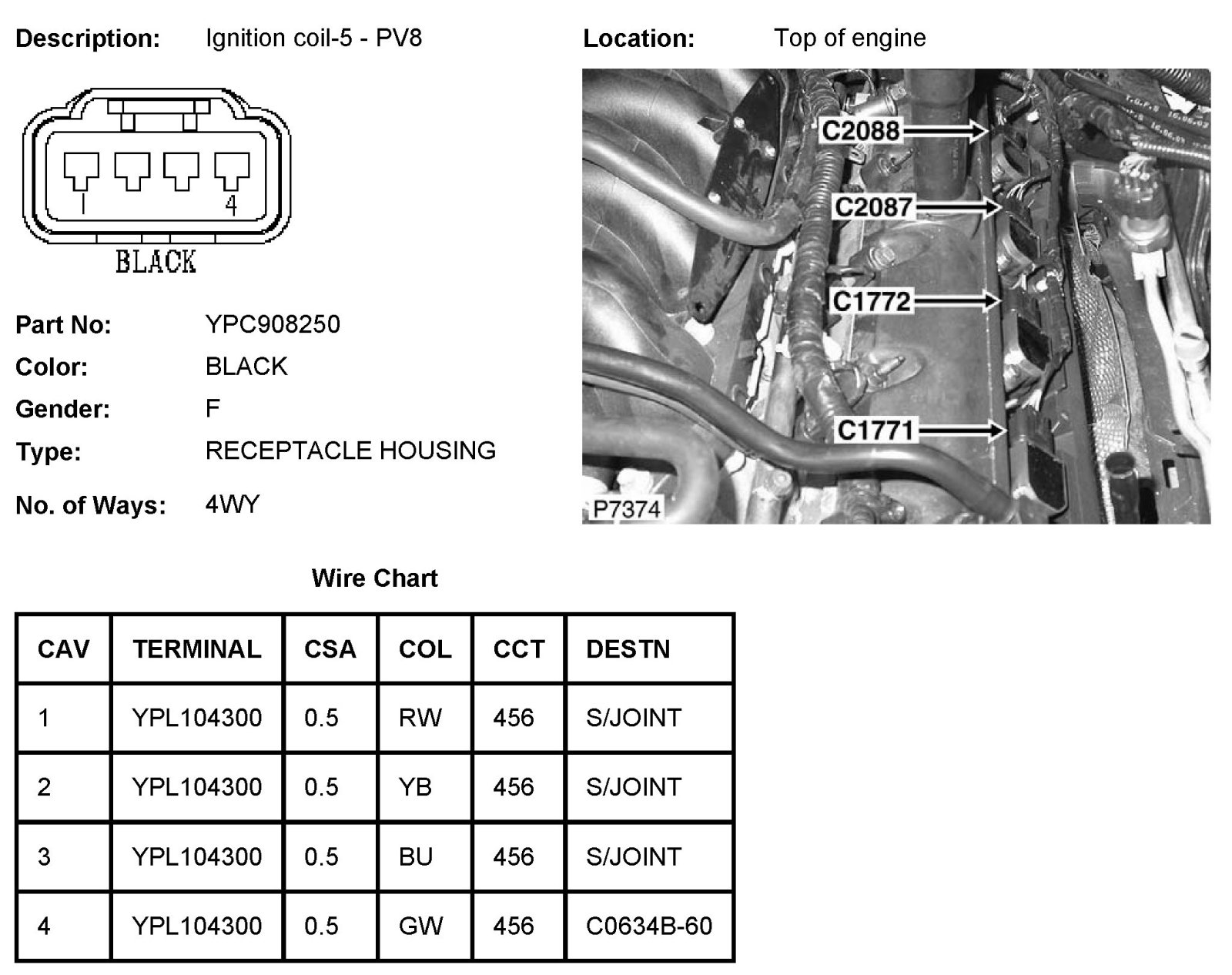

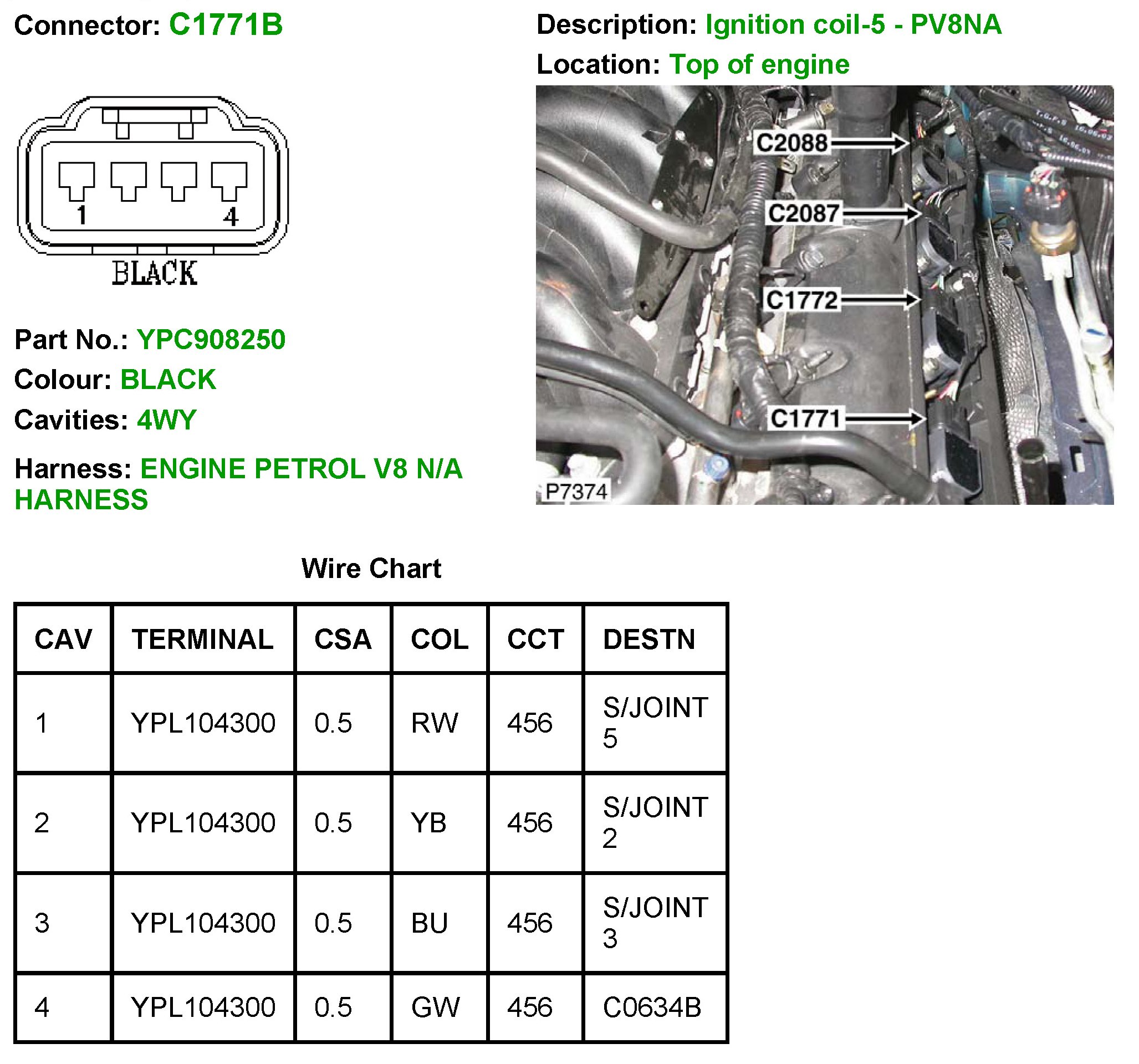

C1771B
C1771B
C1771B:
C1771B:
