Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1401 - C1500
>>

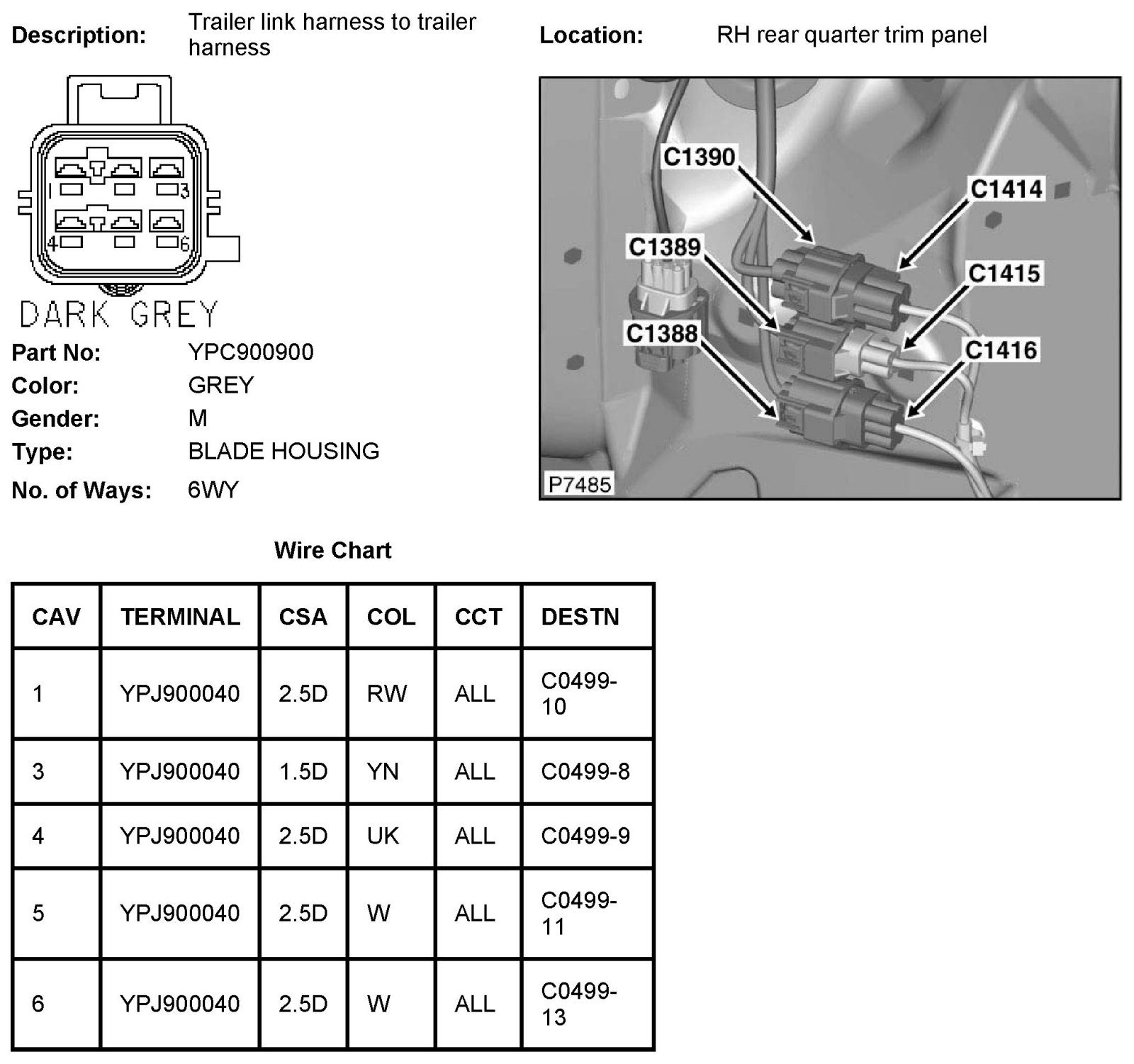

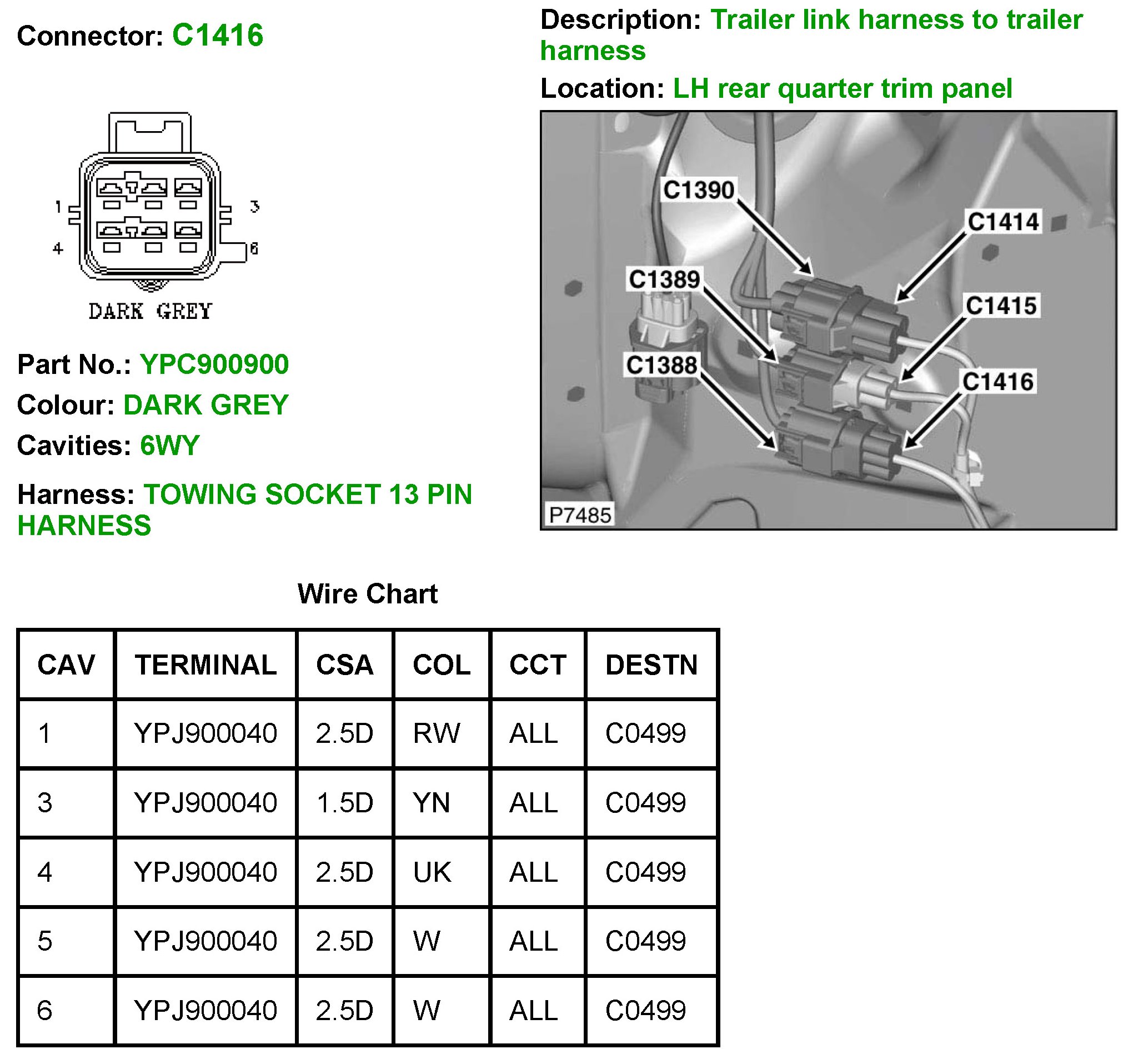

C1416
C1416
C1416:
C1416:
